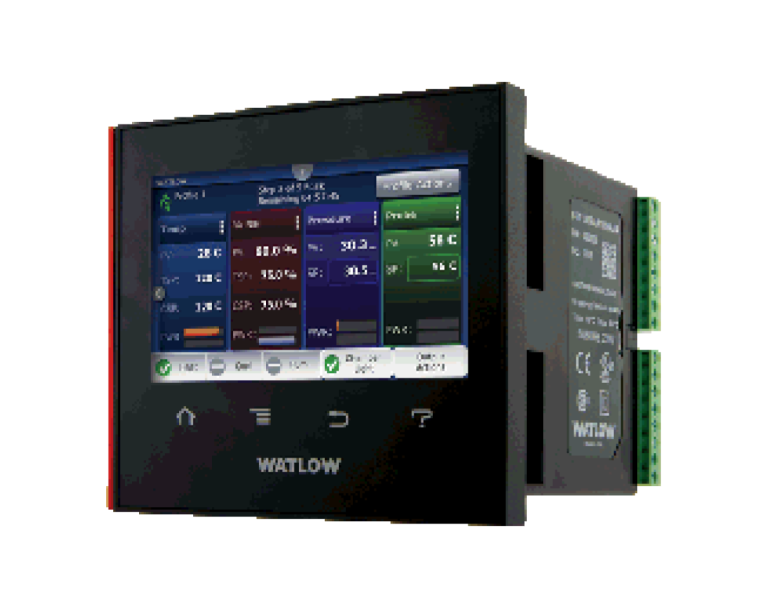

F4T with INTUITION® Integrated Process Controller
F4T with INTUITION® Integrated Process Controller
This industrial temperature controller offers configurable scrolling diagnostics messages in the selected language, easy guided configuration, and copy/paste parameters even with power off. It includes energy counters and load switching for preventive maintenance, and features 32 function block and 8 math application blocks for powerful and versatile industrial control.
The Flexibility of a Modular I/O Controller with Best-in-Class Ease of Use
The F4T with INTUITION temperature process controller from Watlow offers a wide range of fieldremovable I/O modules for maximum design flexibility. Configurations can be custom tailored to meet thescaling needs of a tremendous range of equipment and applications while providing exactly the hardwaretypes required for compatibility. The F4T controller also features a 4.3 inch, color, graphical touch panel.Combining power, flexibility and functionality, this new controller offers unmatched versatility, and itsbest-in-class ease of use could very well make user manuals a thing of the past.
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)

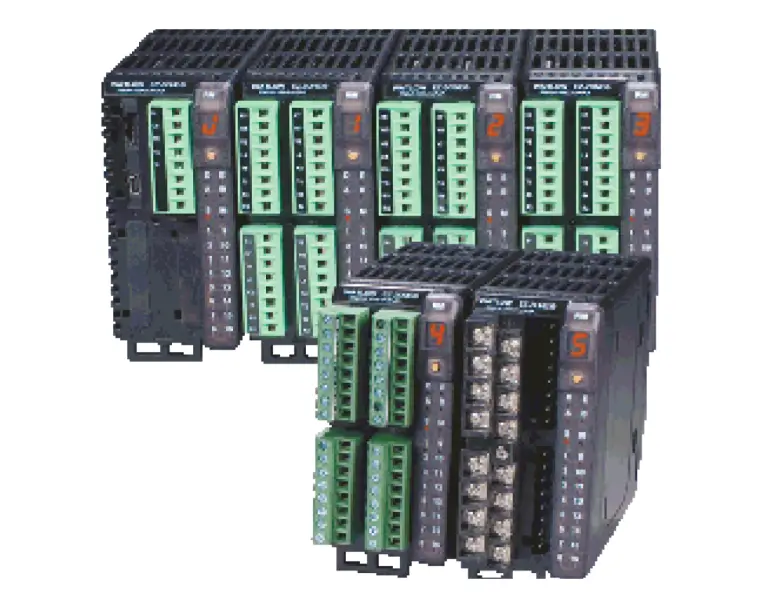

EZ-ZONE® RM Integrated Controller
EZ-ZONE® RM Integrated Controller
The device offers a universal input configurable from the faceplate, an accuracy of 0.2% f.s., and two control outputs for relay, logic or analogue with Heat/Cool function. This device provides the flexibility, accuracy, and control you need for optimal process performance.
Introducing High-Density Modules Integrating Temperature, Process, Limit and Power Control from 1 to152 Loops
The EZ-ZONE RM controller simplifies thermal system management. The EZ-ZONE RM integratedcontroller family is comprised of six module types: an integrated on-off or PID control, monitoring andover/under temperature limit controller module, a high-density on-off or PID control module, a high-densitylimit-only module, an input/output (I/O) expansion module, a high-density monitor/scanner module and adata logging and field communications access module. A system is configured by connecting anycombination of module types to address specific application needs. The EZ-ZONE RM is extremely flexibleand scalable allowing mixing and matching of I/O to configure 1 to 152 control loops and up to 256 monitorpoints.
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)

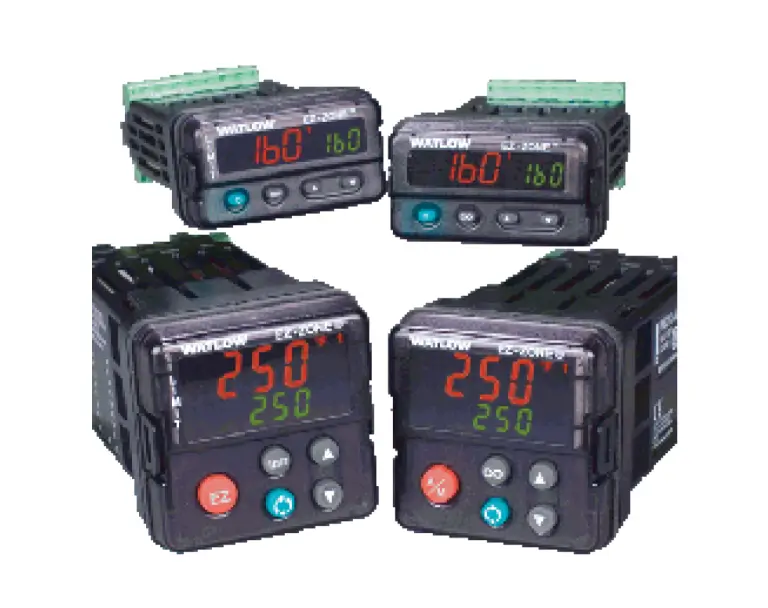

EZ-ZONE® PM Panel Mount Controller
EZ-ZONE® PM Panel Mount Controller
Our latest product is a highly accurate and flexible device for process control. With a universal input configurable from the faceplate, fast acquisition rate of the input signal every 120msec and a resolution of 30000 steps, you can be confident in the precision and reliability of your process control. Additionally, it comes with two control outputs, providing flexibility to choose between relay, logic or analogue with Heat/Cool function for optimal performance.
Helps Reduce System Complexity and Thermal Loop Ownership Costs
The EZ-ZONE PM panel mount controller offers control options that reduce system complexity and thermalloop ownership cost. It can be ordered as a PID controller, an over/under limit controller or its functionscan be combined into an integrated controller. An option to integrate a high amperage power controlleroutput with a high-performance PID controller and an over/under limit controller in one space-saving, panelmount package is also available. Many communications options are offered to support connectivity needs.Because the EZ-ZONE PM panel mount controller is highly scalable, you pay only for what is needed. Thiscontroller is available in 1⁄32,1⁄16,1⁄8 and 1⁄4 DIN panel mount packages. The EZ-ZONE PM controller iseasy to use and is ideal for PID controller, over/under limit controller or integrated controller needs.
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)

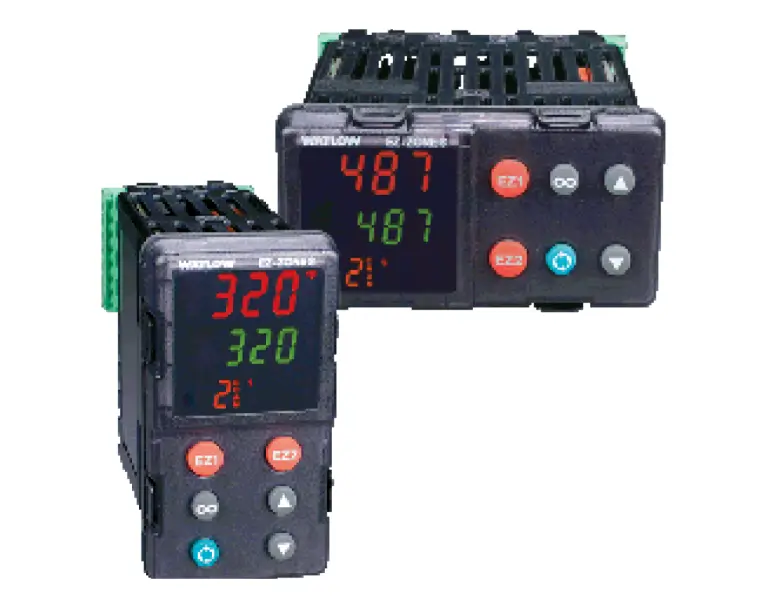

EZ-ZONE® PM Express
EZ-ZONE® PM Express
Our latest product provides reliable and efficient process heating control with advanced functionality such as heater break or short circuit probe alarm. It offers self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes for flexibility and convenience. With the multiset function and timer set ramp, precise temperature control can be achieved for optimal process performance.
Simple to Use, Ideally Suited for Basic Applications or Usage Levels
The EZ-ZONE PM Express panel mount controller is an industry-leading PID controller that allows optimalperformance utilizing simple control and menu functionality without complex features. It is ideal for basicapplications and usage levels.
The EZ-ZONE PM Express is the next generation controller to follow the legacy of Watlow's SERIES 93,SERIES 935 AND SERIES SD controllers that offer easy-to-use features for many basic applications. TheEZ-ZONE PM Express includes one universal input and an option for up to two outputs and is available in1⁄32 and 1⁄16 DIN panel mount packages. It can be ordered as a PID process controller or as a dedicatedover and under-temperature limit controller.
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)

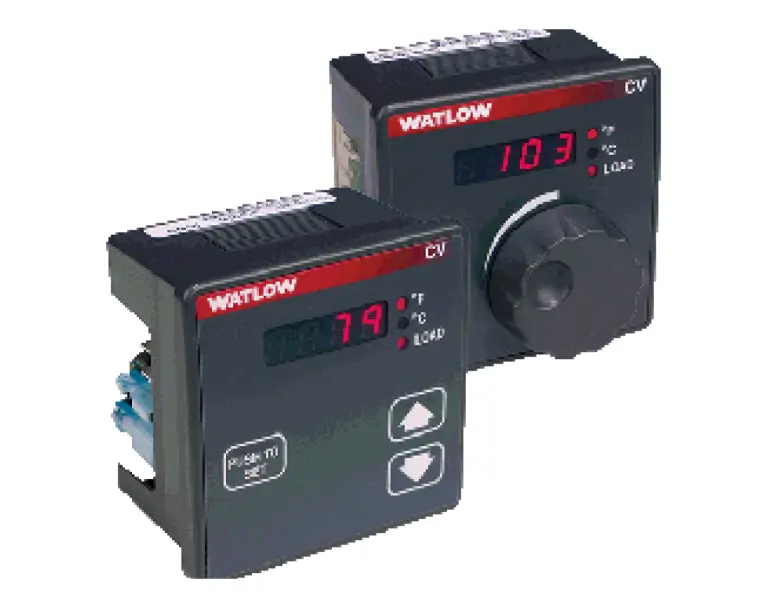

SERIES CV Temperature Controller
SERIES CV Temperature Controller
features different password levels, ensuring secure access to the device's functionalities. With 2 universal inputs configurable for thermocouples, resistance thermometers, linear inputs, and 2 PID control loops, precise temperature control can be achieved. Additionally, our device includes 2 setpoint programmers with 128 steps in 16 programs, providing optimal flexibility for managing complex temperature profiles.
Basic Temperature and Limit Controller Provides Economical Solution for a Wide Range of Applications
Watlow's family of microprocessor-based temperature controllers offers an economical solution forapplications that require simple, on/off control. The SERIES CV temperature controller incorporates amicroprocessor-design that delivers the repeatability, accuracy and performance advantages you cancount on from Watlow's basic temperature controllers.
The SERIES CV controller includes an operator interface for viewing and set point control. A red,four-character, seven segment LED displays the set point to show process options. The set point controlselection is made with a continuous turn rotary encoder. Operating range temperature values are userdefinable as specified in the product configuration part number. SERIES CV controllers are UL® andC-UL® listed and carry CSA and CE approvals. Watlow's temperature controllers include industry-leadingservice and support and are protected by a three-year warranty.
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)

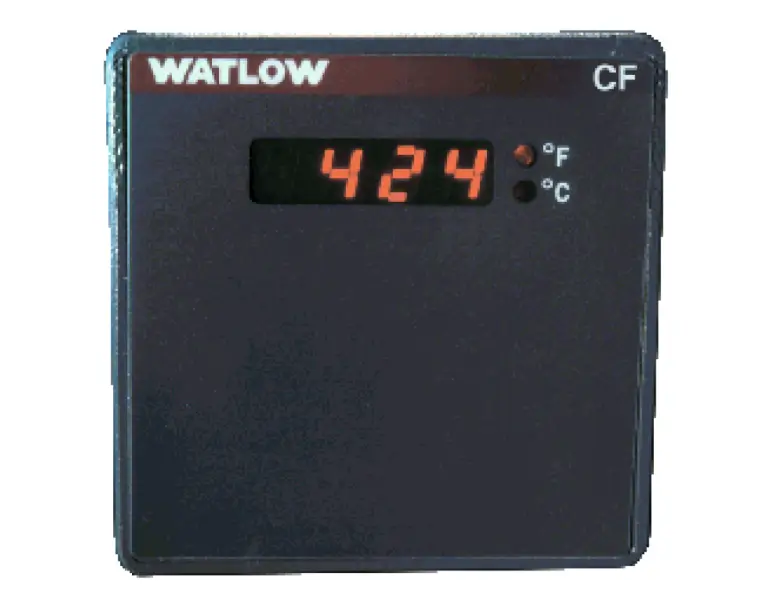

SERIES CF Set Point Controller
SERIES CF Set Point Controller
Our latest product is a reliable and efficient solution for process heating control with advanced functionality. It features heater break or short circuit probe alarm to ensure safety and protection. With self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes, our device provides flexibility and convenience. Additionally, the function multiset, rampa di set, and timer enable precise temperature control for optimal process performance.
Basic Temperature and Limit Controller Provides Economical Solution for a Wide Range of Applications
Watlow's family of microprocessor-based temperature controllers offers an economical solution forapplications that require simple, on-off control. The SERIES CF temperature controllers and set pointcontrollers incorporate a microprocessor design that delivers the repeatability, accuracy and performanceadvantages you can count on from Watlow's basic temperature controllers. Fixed set points are availableand an indicating display is an option. SERIES CF controllers are UL® and C-UL® listed and carry CSAand CE approvals. Watlow's temperature controllers include industry-leading service and support and areprotected by a three-year warranty.
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)

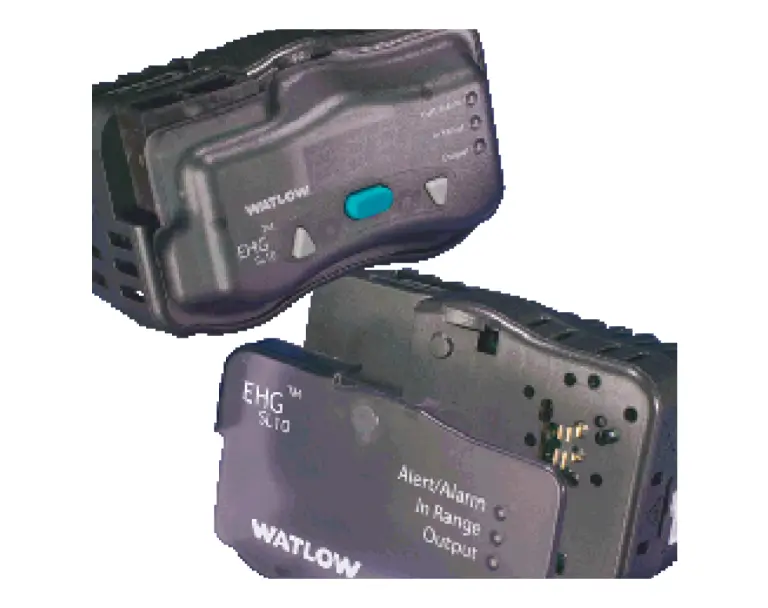

SERIES EHG® SL10 Controller
SERIES EHG® SL10 Controller
Our latest product is a powerful and versatile device for precise temperature control. With self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes, our device provides flexibility and convenience. The multiset function and timer set ramp enable the setting of multiple parameters, ensuring precise temperature control for optimal process performance.
Temperature, Power and Safety Limit Controller in One Package
The SERIES EHG SL10 integrated, multi-function controller is a key component to a powerful system thatintegrates a heater, an adjustable set point temperature controller, a high/low temperature alert, a powerswitching device and a high temperature safety limit. Its agency recognized controller/safety limit meetsUL® 1998 and CE 60730 requirements.
An optional display/communications module can be easily added in the field to provide a digital displayindication, adjustment of set point, RS485 Modbus® communications and other Human Machine Interface(HMI) features. As a scalable system, only what is needed can be purchased. The EHG SL10 controllers'easy to install, compact design, inherent reliability and integrated limit functions offer unmatched value. It isdesigned for easy integration with Watlow heaters to simplify engineering, reduce component count fornew equipment and decrease ownership cost. For original equipment manufacturers (OEMs), CE, SEMI-S2compliance and UL® recognition, the EHG controller reduces time and costs associated with global agencytesting and validation.
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)

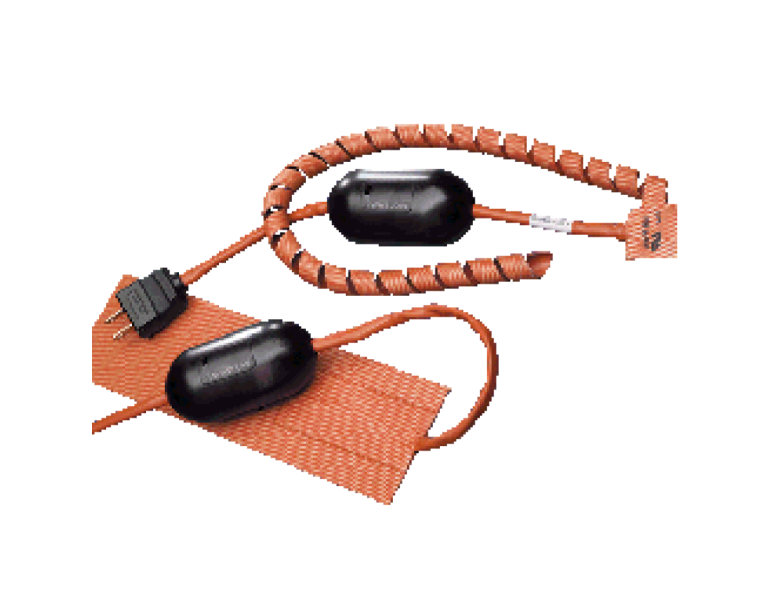

SERIES EHG®
SERIES EHG®
Designed to optimize temperature control with advanced functionality. It features 12 (16) steps arranged in max. 4 programs for efficient and precise temperature management. Additionally, it offers a second SP retransmitted to a slave controller with the same time-base for enhanced control capabilities. This makes our device the ideal solution for any application that demands reliable and efficient temperature control.
Watlow’s Closed Loop Integrated Controller Provides Long-Term Reliability
Many applications requiring a fixed temperature set point rely on a mechanical thermostat for thermalcontrol. Thermostats have proven, however, to be inadequate for many applications due to long-termreliability issues, such as 100,000 cycle rating and poor temperature control. The SERIES EHG® thermalsolution includes a compact temperature control, thermocouple sensor and power switching deviceintegrated into the heater's power cord. The SERIES EHG temperature control and sensor reduces systemcosts and lasts substantially longer than a conventional thermostat solution.
The evolution of miniature microprocessor technology and Watlow switching technology fostereddevelopment of a small, versatile temperature control and thermocouple sensor that is integrated withWatlow silicone rubber heater products. This device senses the temperature via input from a thermocouplestrategically placed on the heater mat. The microprocessor is programmed prior to shipment with anapplication specific set point. This results in quick delivery of a custom, integrated system.
