Gefran Temperature Controls - Value Models Product Details
Innovative PID controllers and temperature programmers that offer precise control plus thewidest, clearest, and most complete operator interfaces for all-around easy operation.
Innovative PID controllers and temperature programmers that offer precise control plus thewidest, clearest, and most complete operator interfaces for all-around easy operation.
Image Gallery
No items found.
No items found.
%20(1).webp)

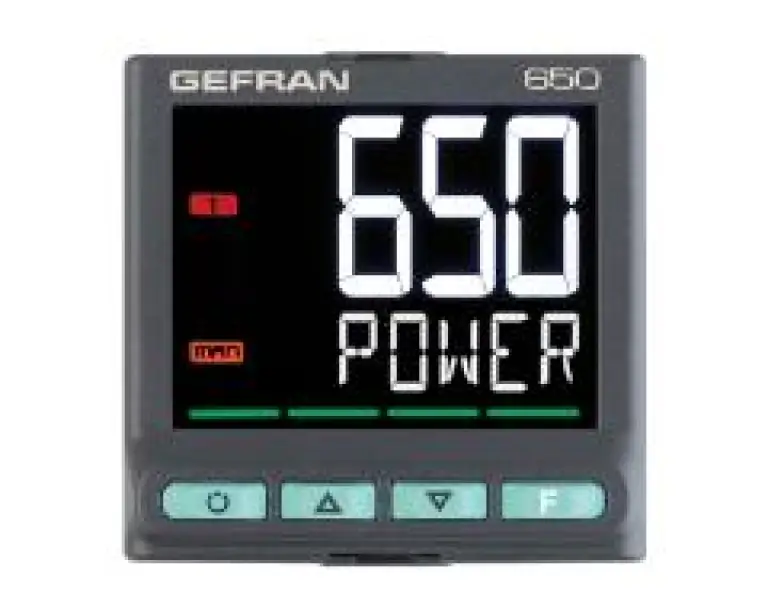

650 PID 1/16 DIN Temperature Controller
650 PID 1/16 DIN Temperature Controller
The device features RS485 serial communication in Modbus RTU, allowing for efficient data exchange between devices. It also includes a removable faceplate for immediate replacement, making maintenance and repairs quick and easy. With a sampling time of just 60ms, the device provides fast and accurate data acquisition, making it a reliable and efficient option for industrial control applications.
Description
- Operator interface with large LCD Display, customizable, with choice of colors
- Scrolling diagnostics messages, configurable, in the selected language
- Easy, guided configuration, copy/paste parameters even with power off
- Preventive maintenance with energy counters (kWh) and load switching
- 16 function block applications
- Timer, setpoint and algorithm programmer for controlling motorized valves
- Advanced tuning of control parameters
- Different password levels
- Universal input configurable for thermocouples, resistance thermometers, linear inputs
- Remote setpoint input
- Relay, logic, isolated analog outputs
- Up to two CT inputs for interrupted load diagnostics
- RS485 serial communication in Modbus RTU
- Removable faceplate for immediate replacement
- Sampling time 60ms
%20(1).webp)
1250 PID 1/8 DIN Temperature Controller
1250 PID 1/8 DIN Temperature Controller
The motorized valve controller includes a timer, set point, and algorithm programmer, allowing for precise control over valve functions. With advanced tuning of control parameters, users can fine-tune the system for optimal performance. The device also features different password levels, providing varying levels of access to the settings and controls to ensure security and prevent unauthorized access.
Description
- Operator interface with large LCD Display, customizable, with choice of colors
- Scrolling diagnostics messages, configurable, in the selected language
- Easy, guided configuration, copy/paste parameters even with power off
- Preventive maintenance with energy counters (kWh) and load switching
- 16 function block applications
- Timer, setpoint and algorithm programmer for controlling motorized valves
- Advanced tuning of control parameters
- Different password levels
- Universal input configurable for thermocouples, resistance thermometers, linear inputs
- Remote setpoint input
- Relay, logic, isolated analog outputs
- Up to two CT inputs for interrupted load diagnostics
- RS485 serial communication in Modbus RTU
- Controller assembly removable from the front for quick replacement.
- Accuracy 0.2%, sampling time 60 ms

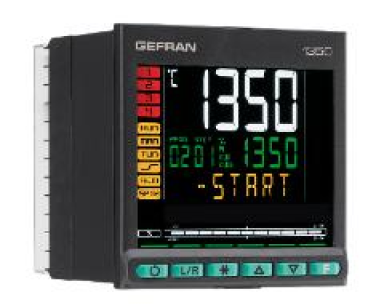

1350 PID 1/4 DIN Temperature Controller
1350 PID 1/4 DIN Temperature Controller
The temperature controller offers advanced tuning of control parameters, different password levels, and a universal input configurable for various temperature sensors. It also features a remote set point input for adjusting the temperature set point from a remote location. This versatile and reliable device provides precise temperature control in a wide range of industrial applications.
Description
- Operator interface with large LCD Display, customizable, with choice of colors
- Scrolling diagnostics messages, configurable, in the selected language
- Easy, guided configuration, copy/ paste parameters even with power off
- Preventive maintenance with energy counters (kWh) and load switching
- 16 function block applications
- Timer, setpoint and algorithm programmer for controlling motorized valves
- Advanced tuning of control parameters
- Different password levels
- Universal input configurable for thermocouples, resistance thermometers, linear inputs
- Remote setpoint input
- Relay, logic, isolated analog outputs
- Up to two CT inputs for interrupted load diagnostics
- RS485 serial communication in Modbus RTU
- Removable faceplate for immediate replacement
- Accuracy 0.2%, sampling time 60 ms
