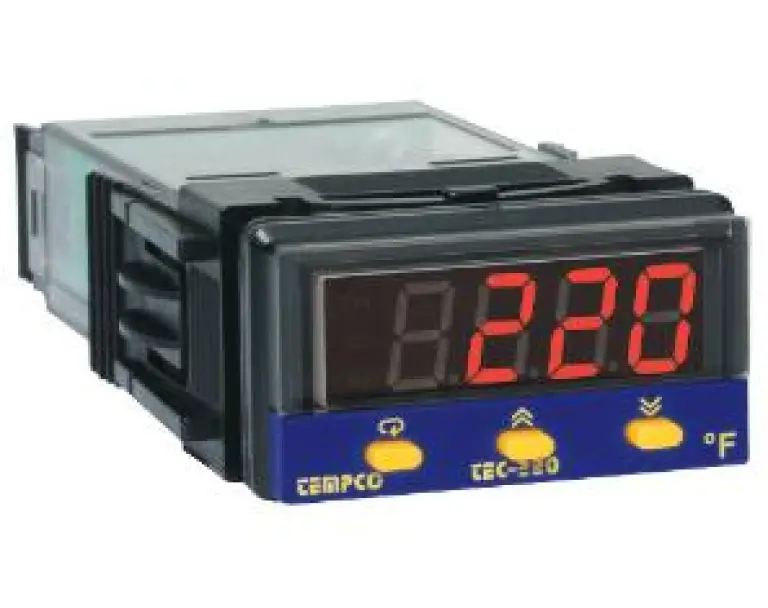

Model TEC-220 Temperature Controller
Model TEC-220 Temperature Controller
This industrial temperature controller offers configurable scrolling diagnostics messages in the selected language, easy guided configuration, and copy/paste parameters even with power off. It includes energy counters and load switching for preventive maintenance, and features 32 function block and 8 math application blocks for powerful and versatile industrial control.
Design Features
- 1/32 DIN size – 24 mm × 48 mm
- Fuzzy Logic PID heat and cool control
- PID Control – Auto-tuning on cold or warm start
- Short panel depth – only 3-7/8" (98 mm) required
- Universal programmable sensor input
- Highly versatile – 6 types of inputs available
- Output 2 can be programmed as output or alarm
- NEMA 4X / IP65 gasketed front panel
- Universal input power, 90-250 VAC or 11-26 VAC/VDC
- Highly accurate universal input with 18 bit analog to digital converter
- Bumpless transfer to manual mode during sensor failure
- Wide variety of alarm mode selections
- RS-485 and RS-232 data communications interface optional
- Bright 0.40" (10 mm) LED display
- High performance at a very low price
%20(1).webp)

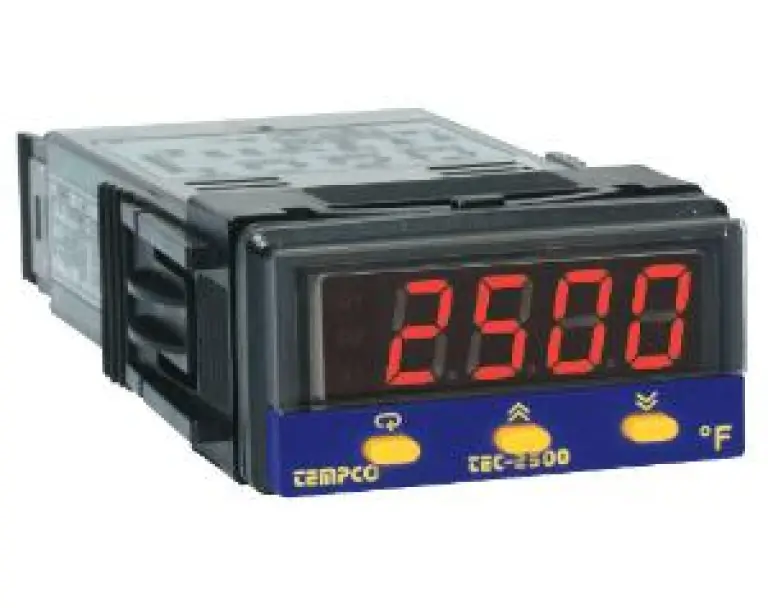

Model TEC-2500 Temperature Controller
Model TEC-2500 Temperature Controller
The device offers a universal input configurable from the faceplate, an accuracy of 0.2% f.s., and two control outputs for relay, logic or analogue with Heat/Cool function. This device provides the flexibility, accuracy, and control you need for optimal process performance.
Design Features
- 1/32 DIN size – 24 mm × 48 mm
- Fuzzy Logic PID heat and cool control
- PID Control – Auto-tuning on cold or warm start
- Short panel depth – only 3-7/8" (98 mm) required
- Universal programmable sensor input
- Heater Break Alarm using 0-50 Amp current transformer
- Output 2 can be programmed as output or alarm
- NEMA 4X / IP65 gasketed front panel
- Alarm 1 – programmable 5 VDC logic output
- Universal input power, 90-264 VAC or 11-26 VAC/VDC
- Bumpless transfer to manual mode during sensor failure
- Power limiter output
- Wide variety of alarm mode selections
- RS-485 and RS-232 data communications interface
- Bright 0.40" (10 mm) LED display
- Fast input sample rate (5 samples/second)
- Automatic programming
- Differential control
- "Soft-Start" ramp and dwell timer
- Analog input for remote setpoint and current transformer
- Event input for changing functions and setpoint
- Hardware lockout plus remote lockout protection
- Loop break alarm
- Analog retransmission
- DC power supply outputs
- High performance at a low price
%20(1).webp)
Model TEC-404 & TEC-405 Temperature Controller
Model TEC-404 & TEC-405 Temperature Controller
Our latest product is a highly accurate and flexible device for process control. With a universal input configurable from the faceplate, fast acquisition rate of the input signal every 120msec and a resolution of 30000 steps, you can be confident in the precision and reliability of your process control. Additionally, it comes with two control outputs, providing flexibility to choose between relay, logic or analogue with Heat/Cool function for optimal performance.
Design Features
- 1/4 DIN size – 96 mm × 96 mm
- Model TEC-404 Temperature Control with dial/potentiometer setpoint
- Model TEC-405 Temperature Control with pushwheel setpoint
- Laser trimmed ASIC components
- On-off or time proportional selection
- Short panel depth – only 2.0"
- (51 mm) required
- Digital display, 0.56" (14 mm) red LED
- Wide selection of output options
- Universal power input, 90-264 VAC or 20-32 VAC/VDC
- Sensor break protection
- Good performance at a very low price
%20(1).webp)

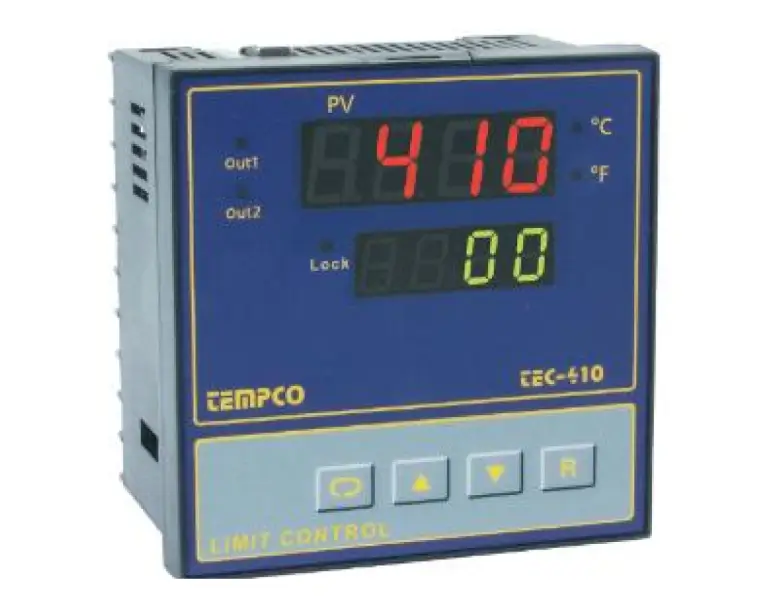

Model TEC-410 Temperature Controller
Model TEC-410 Temperature Controller
Our latest product provides reliable and efficient process heating control with advanced functionality such as heater break or short circuit probe alarm. It offers self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes for flexibility and convenience. With the multiset function and timer set ramp, precise temperature control can be achieved for optimal process performance.
Design Features
- High Limit Control protects personnel, equipment and materials from over-temperature process conditions
- Universal programmable sensor input
- Versatile – 2 types of outputs available
- Highly accurate universal input with 18 bit analog to digital converter
- FM approved for electric & gas heat systems
- Bright 0.40" (10 mm) red LED process display
- Short panel depth required
- Output 2 can be programmed as output or input
- Universal input power – 90-250 VAC or 11-26 VAC/VDC
- Event input for remote reset
- Two programmable outputs
- Optional RS-485 or RS-232 communications interface
- Optional retransmission
- Optional NEMA 4X/IP65 front face
%20(1).webp)

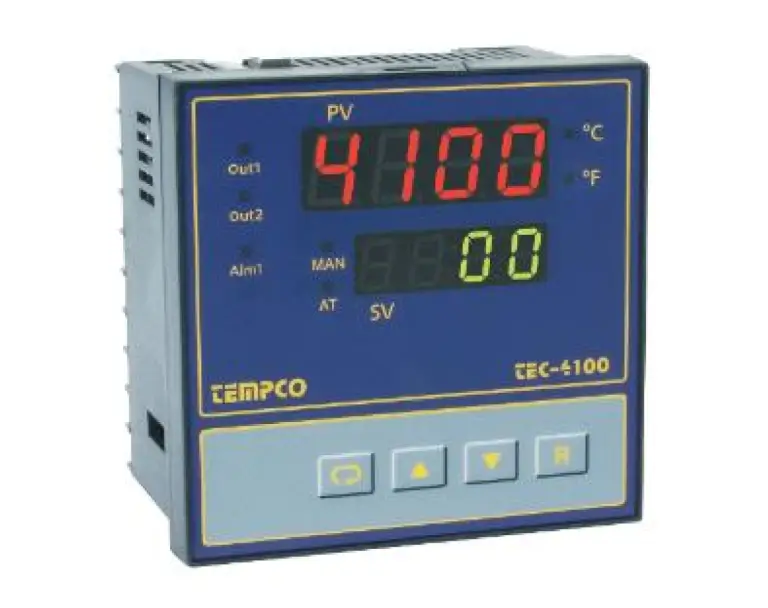

Model TEC-4100 Temperature Controller
Model TEC-4100 Temperature Controller
features different password levels, ensuring secure access to the device's functionalities. With 2 universal inputs configurable for thermocouples, resistance thermometers, linear inputs, and 2 PID control loops, precise temperature control can be achieved. Additionally, our device includes 2 setpoint programmers with 128 steps in 16 programs, providing optimal flexibility for managing complex temperature profiles.
Design Features
- 1/4 DIN size – 96 mm × 96 mm
- Fuzzy Logic PID heat and cool control
- PID Control – Auto-tuning on cold or warm start
- Short panel depth – only 2" (53 mm) required
- Universal programmable sensor input
- Highly versatile – 6 types of inputs available
- Output 2 can be used for cooling function
- Universal input power— 90-250 VAC or 11-26 VAC/VDC
- Optional NEMA 4X/IP65 front panel
- Bumpless transfer to manual mode during sensor failure
- Wide variety of alarm mode selections
- Optional RS-232 or RS-485 communications interface
- Bright 0.55" (14 mm) red LED process display and 0.40" (10 mm) green LED setpoint display
- High performance at a low price
%20(1).webp)

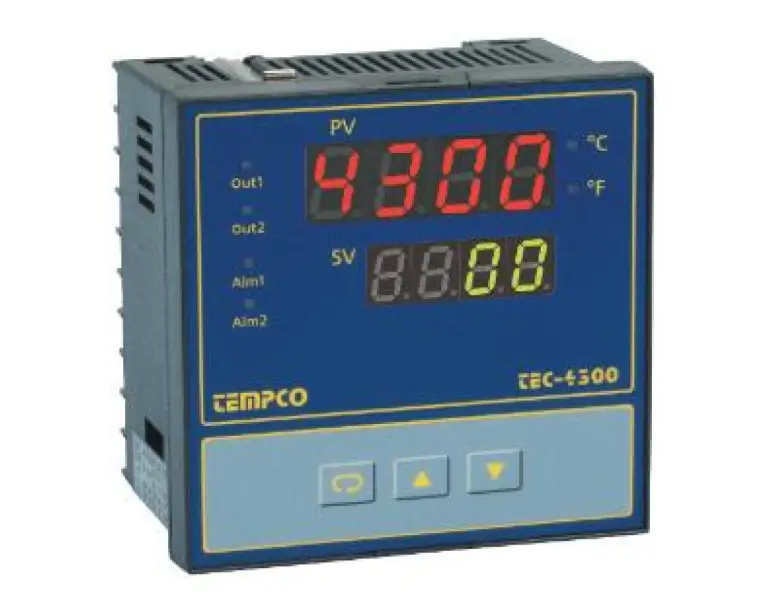

Model TEC-4300 Temperature Controller
Model TEC-4300 Temperature Controller
Our latest product is a reliable and efficient solution for process heating control with advanced functionality. It features heater break or short circuit probe alarm to ensure safety and protection. With self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes, our device provides flexibility and convenience. Additionally, the function multiset, rampa di set, and timer enable precise temperature control for optimal process performance.
Design Features
- 1/4 DIN size – 96 mm × 96 mm
- Fuzzy Logic PID heat and cool control
- PID Control – Auto-tuning on cold or warm start
- Short panel depth – only 2" (53 mm) required
- Universal programmable sensor input
- Heater Break Alarm using 0-50 Amp current transformer
- Output 2 can be programmed as cooling output only
- 2 optional alarms – programmable NO or NC relay
- Wide variety of alarm mode selections
- Bumpless transfer to manual mode during sensor failure
- Universal input power, 90-264 VAC or 11-26 VAC/VDC
- Power limiter output
- RS-485 and RS-232 data communications interface
- Bright 0.55" (14 mm) red LED process display 0.40" (10 mm) and green LED
- setpoint display stabilized with a digital filter if required
- Fast input sample rate (5 samples/second)
- Differential control
- "Soft-Start" ramp and dwell timer
- Analog input for remote setpoint and current transformer
- Event input for changing functions and setpoint
- Hardware lockout plus remote lockout protection
- Loop break alarm
- Analog retransmission
- DC power supply outputs
- Tempco's most highly featured 1/4 DIN control
%20(1).webp)

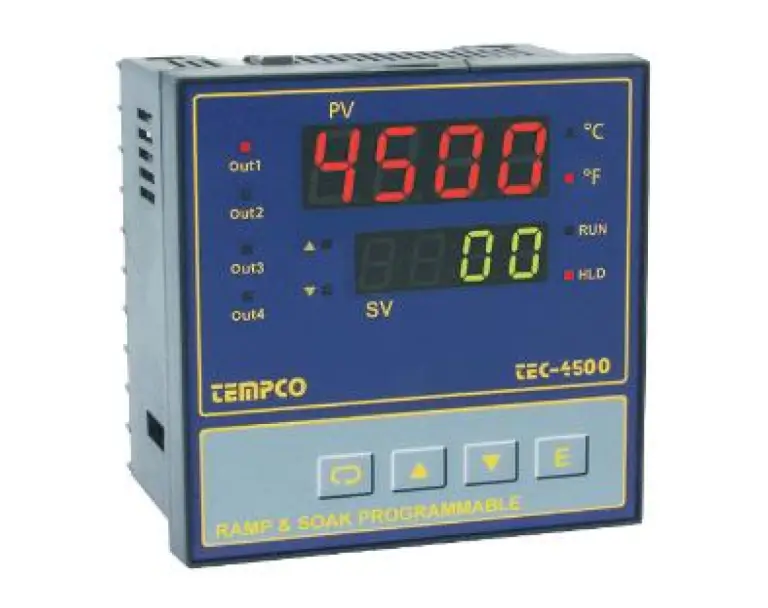

Model TEC-4500 Temperature Controller
Model TEC-4500 Temperature Controller
Our latest product is a powerful and versatile device for precise temperature control. With self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes, our device provides flexibility and convenience. The multiset function and timer set ramp enable the setting of multiple parameters, ensuring precise temperature control for optimal process performance.
Design Features
- Ramp & Soak Programmable Control
- Nine recipes (profiles) available using 64 segments maximum per recipe
- Event Input – one of 8 functions can be chosen: start run mode, hold mode, abort recipe, manual mode, failure transfer, turn off, segment
- advance, select 2nd set of PID parameters
- Event Output – 3 relays are available. Can be programmed to any segment or end of recipe
- Analog Retransmission – optional mA or VDC transfer of PV or SV values
- Highly accurate universal input with 18 bit analog to digital converter
- Bright 0.40" (10mm) red LED process display
- Fast sample rate – 200ms
- Fuzzy logic autotune PID – 2 sets of values can be used
- Optional RS-485 or RS-232 communications interface
- Programming port available for PC connection allowing quick set-up
- Lockout protection guards against unauthorized setting changes
- Bumpless transfer allows continued temperature control if sensor fails
- Universal input power – 90-250 VAC or 11-26 VAC/VDC
- Short panel depth required
%20(1).webp)

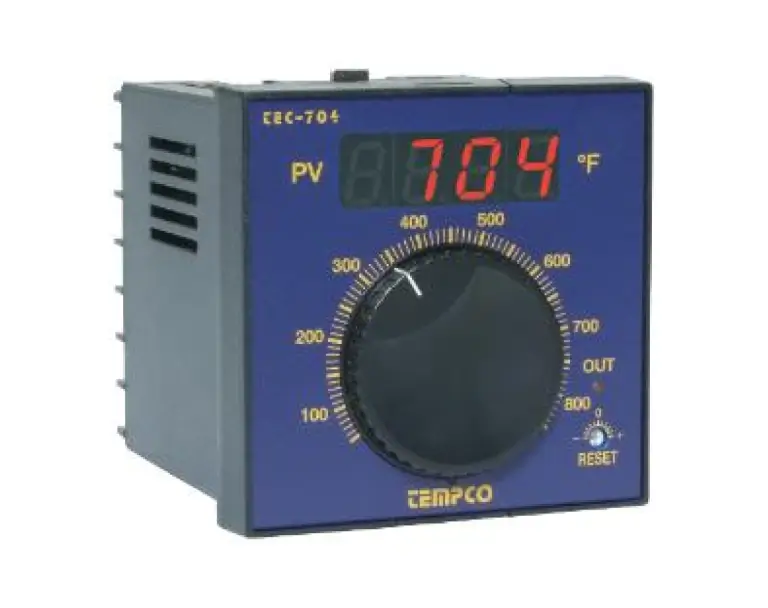

Model TEC-704 Temperature Controller
Model TEC-704 Temperature Controller
Designed to optimize temperature control with advanced functionality. It features 12 (16) steps arranged in max. 4 programs for efficient and precise temperature management. Additionally, it offers a second SP retransmitted to a slave controller with the same time-base for enhanced control capabilities. This makes our device the ideal solution for any application that demands reliable and efficient temperature control.
Design Features
- 3/16 DIN size – 72 mm × 72 mm
- Laser trimmed ASIC components
- Short panel depth – only 2-9/16" (65 mm) required
- On-off or time proportional selection
- Digital display, 0.4" (10 mm) red LEDs
- Wide selection of output options
- High precision wire wound dial/potentiometer setpoint
- Sensor break protection
- Good performance at a very low price
%20(1).webp)

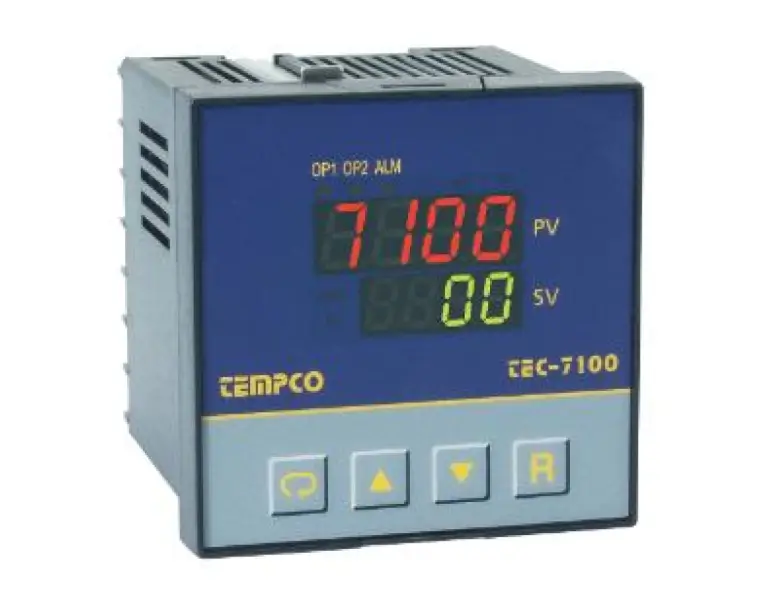

Model TEC-7100 Temperature Controller
Model TEC-7100 Temperature Controller
Designed for efficient and reliable process control. Our device features RS485 serial communication in Modbus RTU for seamless integration into your process control system. With a removable faceplate for immediate replacement and sampling time of 60ms, you can expect minimal downtime and optimal performance. This makes our product the ideal solution for any application that demands precise and reliable process control.
Design Features
- 3/16 DIN size – 72 mm × 72 mm
- Fuzzy Logic PID heat and cool control
- PID Control – Auto-tuning on cold or warm start
- Short panel depth – only 2-9/16" (65 mm) required
- Universal programmable sensor input
- Highly versatile – 6 types of inputs available
- Output 2 can be used for cooling function
- Universal input power – 90-250 VAC or 11-26 VAC/VDC
- Optional NEMA 4X/IP65 front panel
- Bumpless transfer to manual mode during sensor failure
- Wide variety of alarm mode selections
- Optional RS-485 communications interface
- Bright 0.40" (10 mm) red LED process display 0.31" (8 mm) green LED setpoint display
- High performance at a low price
%20(1).webp)
Model TEC-805 Temperature Controller
Model TEC-805 Temperature Controller
Our latest product is a powerful and versatile device for precise temperature control. With self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes, our device provides flexibility and convenience. The multiset function and timer set ramp enable the setting of multiple parameters, ensuring precise temperature control for optimal process performance.
Design Features
- 1/8 DIN size – 48 mm × 96 mm
- Short panel depth – only 2-9/16" (65 mm) required
- Laser trimmed ASIC components
- On-off or time proportional selection
- Digital input by pushwheel switch
- Digital display on 0.4" (10 mm)
- Wide selection of output options
- Universal power input, 90-264 VAC
- Sensor break protection
- Good performance at a very low price
%20(1).webp)

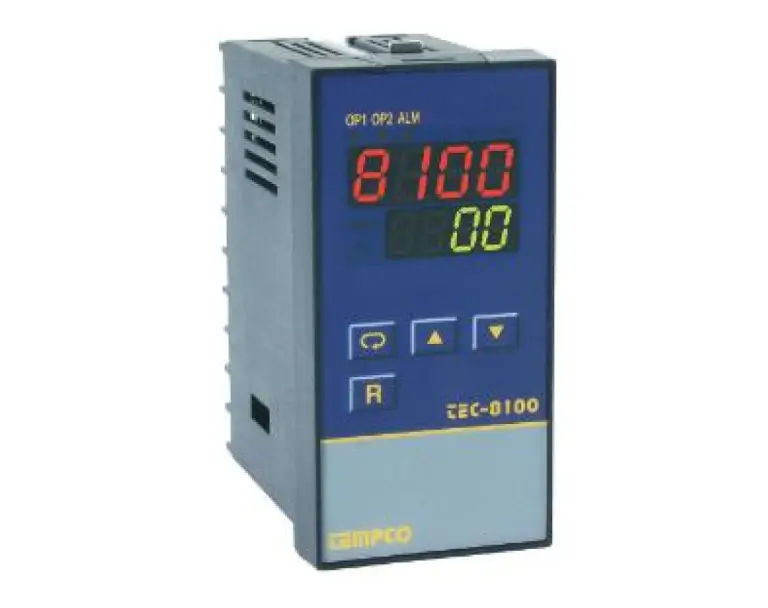

Model TEC-8100 Temperature Controller
Model TEC-8100 Temperature Controller
Designed to optimize temperature control with advanced functionality. It features 12 (16) steps arranged in max. 4 programs for efficient and precise temperature management. Additionally, it offers a second SP retransmitted to a slave controller with the same time-base for enhanced control capabilities. This makes our device the ideal solution for any application that demands reliable and efficient temperature control.
Design Features
- 1/8 DIN size – 96 mm × 48 mm
- Fuzzy Logic PID heat and cool control
- PID Control – Auto-tuning on cold or warm start
- Short panel depth – only 2-9/16" (65 mm) required
- Universal programmable sensor input
- Highly versatile – 6 types of inputs available
- Output 2 can be used for cooling function
- Universal input power – 90-250 VAC or 11-26 VAC/VDC
- Optional NEMA 4X/IP65 front panel
- Bumpless transfer to manual mode during sensor failure
- Wide variety of alarm mode selections
- Optional RS-232 or RS-485 communications interface
- Bright 0.40" (10 mm) red LED process display, 0.31" (8 mm) green LED setpoint display
- High performance at a very low price
%20(1).webp)

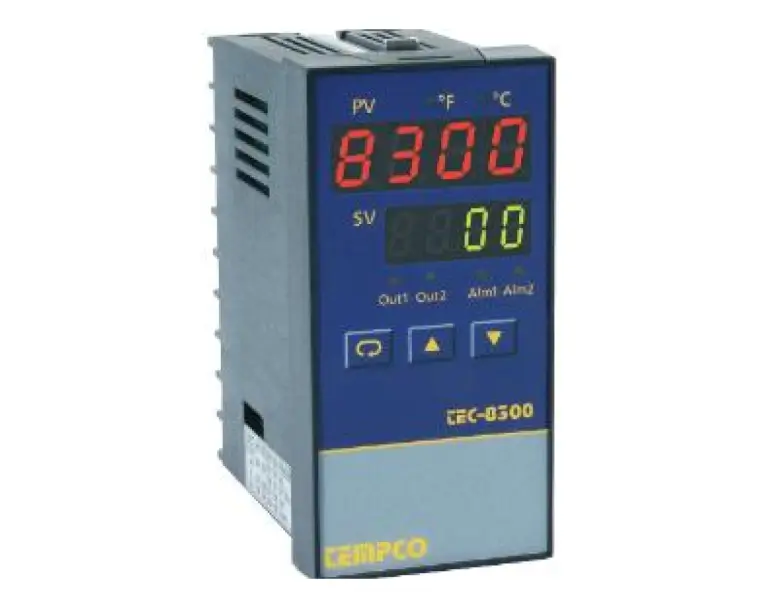

Model TEC-8300 Temperature Controller
Model TEC-8300 Temperature Controller
Designed for efficient and reliable process control. Our device features RS485 serial communication in Modbus RTU for seamless integration into your process control system. With a removable faceplate for immediate replacement and sampling time of 60ms, you can expect minimal downtime and optimal performance. This makes our product the ideal solution for any application that demands precise and reliable process control.
Design Features
- 1/8 DIN size – 48 mm × 96 mm
- Fuzzy Logic PID heat and cool control
- PID Control – Auto-tuning on cold or warm start
- Short panel depth – only 2-9/16" (65 mm) required
- Universal programmable sensor input
- Heater Break Alarm using 0-50 Amp current transformer
- Output 2 can be programmed as cooling output only
- 2 optional alarms – programmable NO or NC relay
- Wide variety of alarm mode selections
- Bumpless transfer to manual mode during sensor failure
- Universal input power, 90-264 VAC
- Power limiter output
- RS-485 and RS-232 data communications interface
- Bright 0.40" (10 mm) red LED process display, 0.31" (8 mm)green LED setpoint display stabilized with a digital filter ifrequired
- Fast input sample rate (5 samples/second)
- Automatic programming
- Differential control
- "Soft-Start" ramp and dwell timer
- Analog input for remote setpoint and current transformer
- Event input for changing functions and setpoint
- Hardware lockout plus remote lockout protection
- Loop break alarm
- Analog retransmission
- DC power supply outputs
- Tempco's most highly featured 1/8 DIN control
.webp)

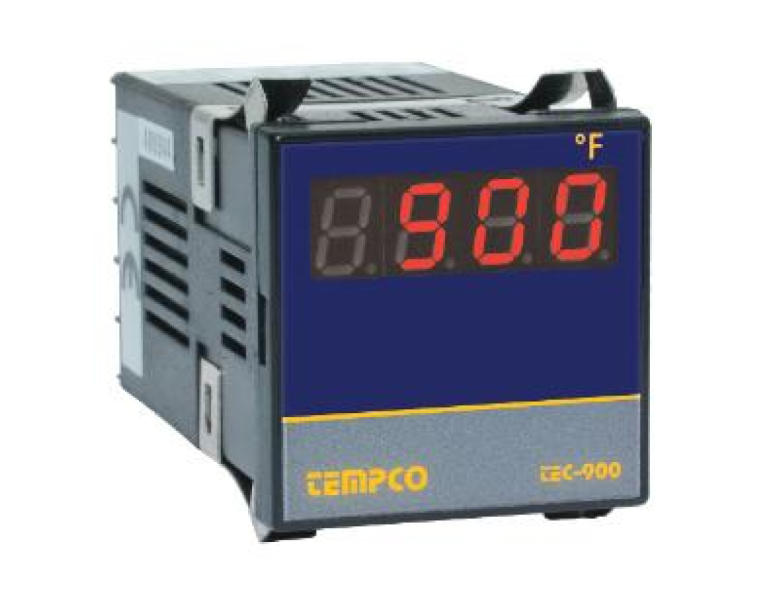

Model TEC-900 Temperature Controller
Model TEC-900 Temperature Controller
Our latest product is a powerful and versatile device for precise temperature control. With self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes, our device provides flexibility and convenience. The multiset function and timer set ramp enable the setting of multiple parameters, ensuring precise temperature control for optimal process performance.
Design Features
- 1/16 DIN size – 48 mm × 48 mm
- Short panel depth – only 3-3/8"
- (86 mm) required
- Laser trimmed ASIC components
- On-off or time proportional selections
- Wide selection of output options
- Universal power input, 90-264 VAC
- Sensor break protection
- Good performance at a very low price
- Model TEC-905 control with pushwheel setpoint
- Model TEC-900 indicator only
.webp)

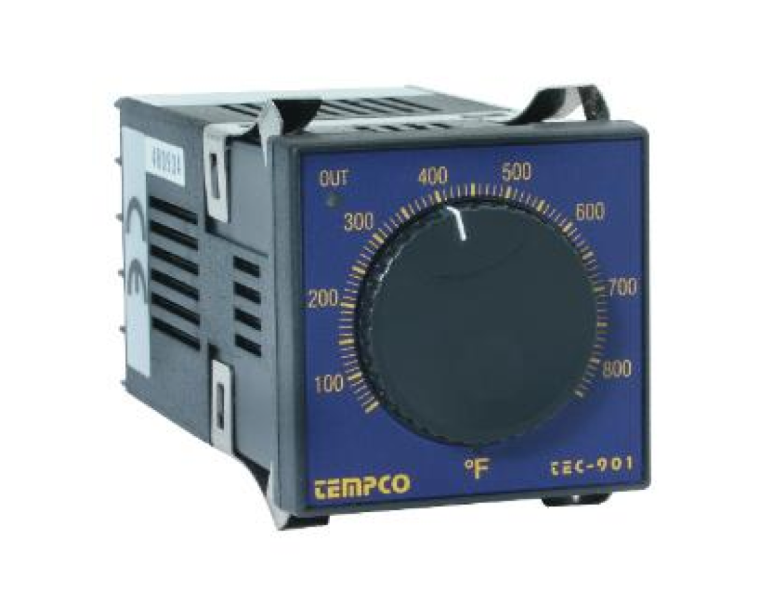

Model TEC-901 & TEC 902 Temperature Controller
Model TEC-901 & TEC 902 Temperature Controller
Designed to optimize temperature control with advanced functionality. It features 12 (16) steps arranged in max. 4 programs for efficient and precise temperature management. Additionally, it offers a second SP retransmitted to a slave controller with the same time-base for enhanced control capabilities. This makes our device the ideal solution for any application that demands reliable and efficient temperature control.
Design Features
- 1/16 DIN size – 48 mm × 48 mm
- Short panel depth – only 3-3/8" (86 mm) required
- Laser trimmed ASIC components
- On-off or time proportional selections
- Wide selection of output options
- Dial/Potentiometer setpoint
- Sensor break protection
- Good performance at a very low price
- Model TEC-901 temperature control
- Model TEC-902 temperature control with process temperature Hi-Low LED indicators
%20(1).webp)

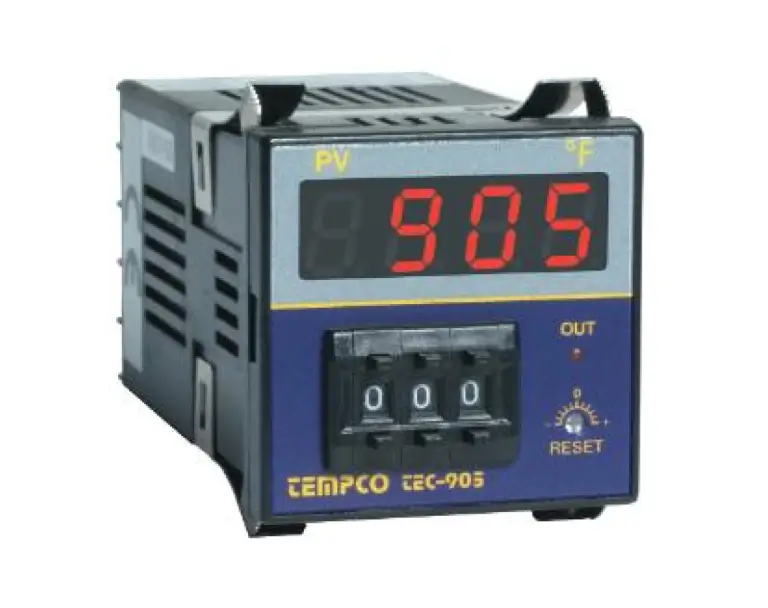

Model TEC-905 Temperature Controller
Model TEC-905 Temperature Controller
Designed for efficient and reliable process control. Our device features RS485 serial communication in Modbus RTU for seamless integration into your process control system. With a removable faceplate for immediate replacement and sampling time of 60ms, you can expect minimal downtime and optimal performance. This makes our product the ideal solution for any application that demands precise and reliable process control.
Design Features
- 1/16 DIN size – 48 mm × 48 mm
- Short panel depth – only 3-3/8"
- (86 mm) required
- Laser trimmed ASIC components
- On-off or time proportional selections
- Wide selection of output options
- Universal power input, 90-264 VAC
- Sensor break protection
- Good performance at a very low price
- Model TEC-905 control with pushwheel setpoint
- Model TEC-900 indicator only
%20(1).webp)

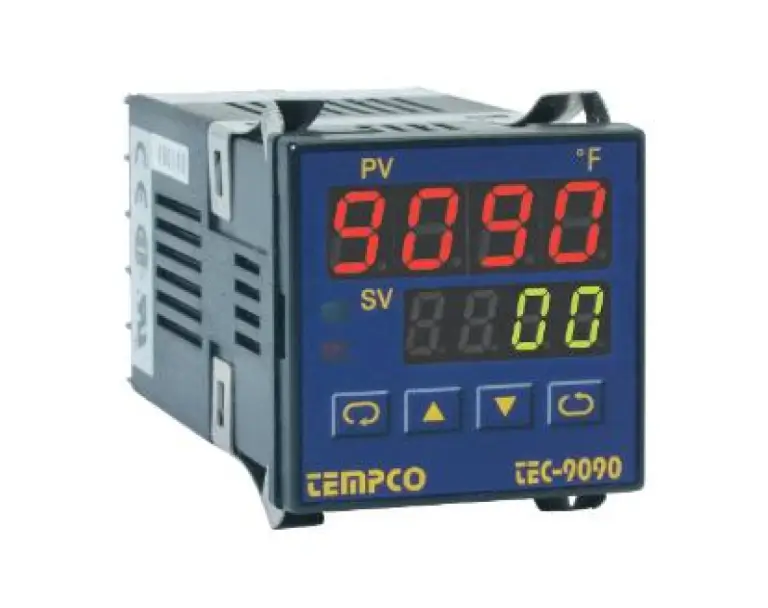

Model TEC-9090 Temperature Controller
Model TEC-9090 Temperature Controller
Our latest product is a powerful and versatile device for precise temperature control. With self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes, our device provides flexibility and convenience. The multiset function and timer set ramp enable the setting of multiple parameters, ensuring precise temperature control for optimal process performance.
Design Features
- 1/16 DIN size – 48 mm × 48 mm
- Fuzzy Logic PID heat and cool control
- PID Control – Auto-tuning on cold or warm start
- Short panel depth – only 3-7/8" (86 mm) required
- Universal programmable sensor input
- Highly versatile – 6 types of inputs available
- Optional relay alarm output
- Universal input power 90-264 VAC, 20-32 VAC/VDC or 10-18 VDC
- Wide variety of alarm mode selections
- Bright 0.40" (10 mm) red LED process display 0.31" (8 mm) green LED setpoint
%20(1).webp)

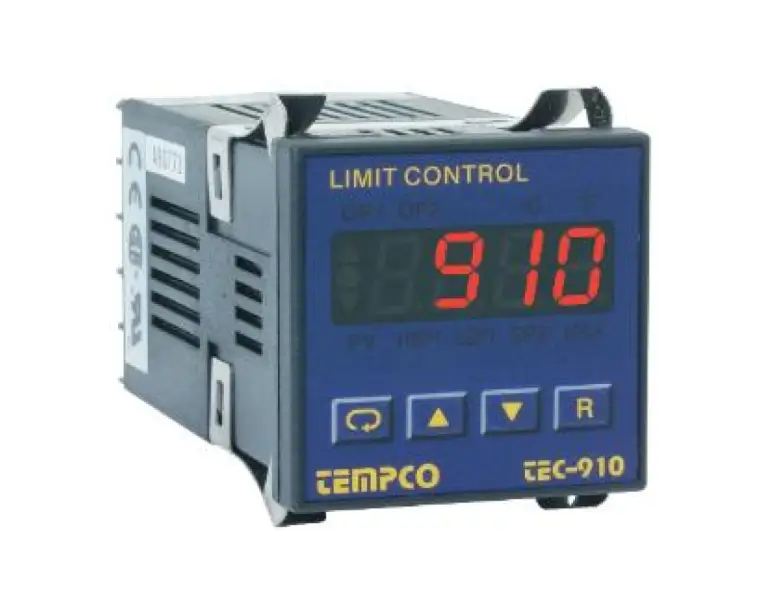

Model TEC-910 Temperature Controller
Model TEC-910 Temperature Controller
Designed to optimize temperature control with advanced functionality. It features 12 (16) steps arranged in max. 4 programs for efficient and precise temperature management. Additionally, it offers a second SP retransmitted to a slave controller with the same time-base for enhanced control capabilities. This makes our device the ideal solution for any application that demands reliable and efficient temperature control.
Design Features
- High Limit Control protects personnel, equipment and materials from over-temperature process conditions
- Universal programmable sensor input
- Versatile – 2 types of outputs available
- Highly accurate universal input with 18 bit analog to digital converter
- FM approved for electric & gas heat systems
- Bright 0.40" (10 mm) red LED process display
- Short panel depth required
- Output 2 can be programmed as output or input
- TEC-910 Design Features
- Universal input power – 90-264 VAC or 11-26 VAC/VDC
- Optional event input for remote reset
- Optional RS-485 communications interface
- Output 2 can be programmed as output or input
%20(1).webp)

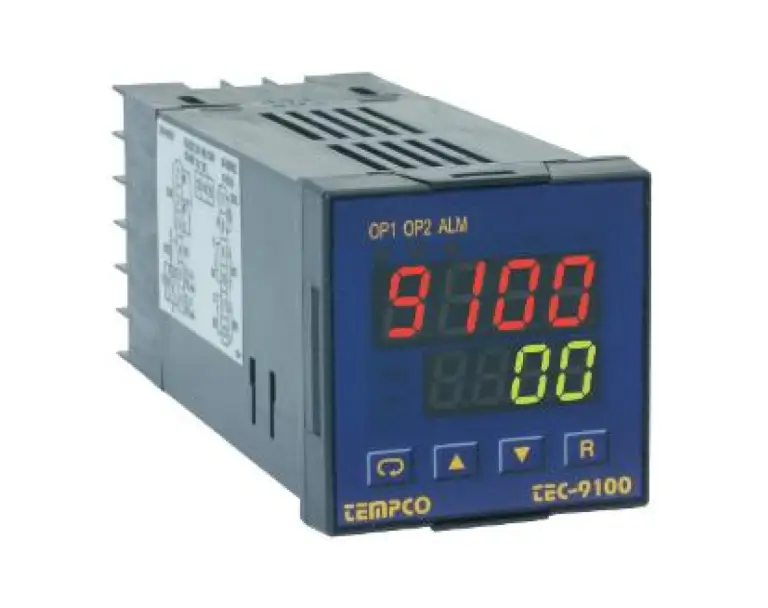

Model TEC-9100 Temperature Controller
Model TEC-9100 Temperature Controller
Designed for efficient and reliable process control. Our device features RS485 serial communication in Modbus RTU for seamless integration into your process control system. With a removable faceplate for immediate replacement and sampling time of 60ms, you can expect minimal downtime and optimal performance. This makes our product the ideal solution for any application that demands precise and reliable process control.
Design Features
- 1/16 DIN size – 48 mm × 48 mm
- Fuzzy Logic PID heat and cool control
- PID Control – Auto-tuning on cold or warm start
- Short panel depth – only 4-1/8" (105 mm) required
- Universal programmable sensor input
- Highly versatile – 6 types of output available
- Output 2 can be programmed as output or alarm
- Universal input power – 90-250 VAC or 11-26 VAC/VDC
- Highly accurate universal input
- Optional NEMA 4X/IP65 front panel
- Bumpless transfer to manual mode during sensor failure
- Wide variety of alarm mode selections
- Optional RS-232 or RS-485 communications interface
- Bright 0.40" (10 mm) red LED process display 0.31" (8 mm) green LED setpoint display
- High performance at a very low price
%20(1).webp)

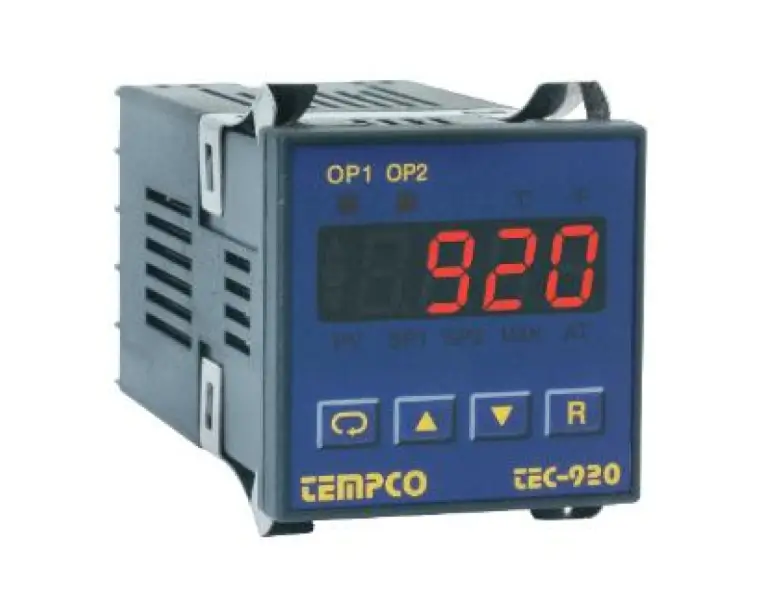

Model TEC-920 Temperature Controller
Model TEC-920 Temperature Controller
Our latest product is a powerful and versatile device for precise temperature control. With self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes, our device provides flexibility and convenience. The multiset function and timer set ramp enable the setting of multiple parameters, ensuring precise temperature control for optimal process performance.
Design Features
- 1/16 DIN size – 48 mm × 48 mm
- Fuzzy Logic PID heat and cool control
- PID Control – Auto-tuning on cold or warm start
- Short panel depth – only 3-3/8" (86 mm) required
- Universal programmable sensor input
- Highly versatile – 6 types of inputs available
- Output 2 can be programmed as output or alarm
- Universal input power – 90-250 VAC or 11-26 VAC/VDC
- Highly accurate universal input with 18 bit analog to digital converter
- Bumpless transfer to manual mode during sensor failure
- Wide variety of alarm mode selections
- Optional RS-485 communications interface
- Bright 0.40" (10 mm) LED display
- High performance at a very low price
.webp)

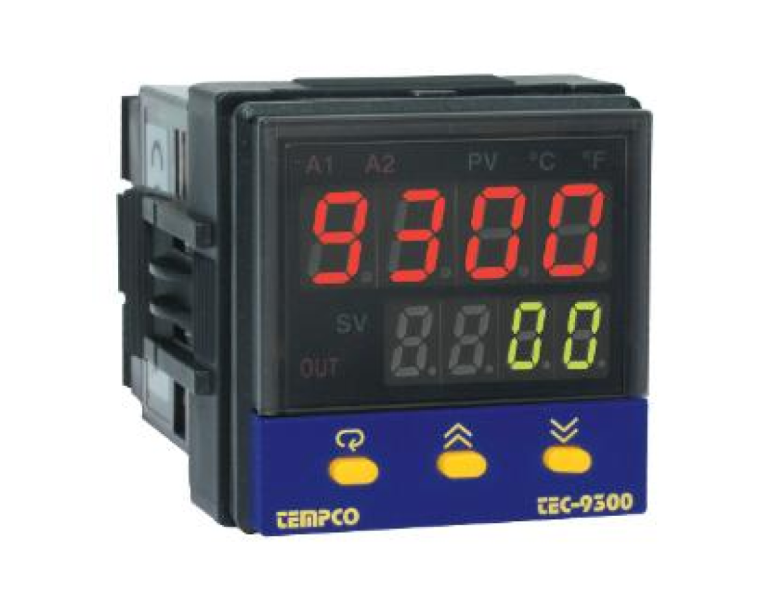

Model TEC-9300 Temperature Controller
Model TEC-9300 Temperature Controller
Designed to optimize temperature control with advanced functionality. It features 12 (16) steps arranged in max. 4 programs for efficient and precise temperature management. Additionally, it offers a second SP retransmitted to a slave controller with the same time-base for enhanced control capabilities. This makes our device the ideal solution for any application that demands reliable and efficient temperature control.
Design Features
- 1/16 DIN size – 48 mm × 48 mm
- Fuzzy Logic PID heat and cool control
- PID Control – Auto-tuning on cold or warm start
- Short panel depth – only 3" (75 mm) required
- Universal programmable sensor input
- Heater Break Alarm using 0-50 Amp current transformer
- Output 2 can be programmed as output or alarm
- NEMA 4X / IP65 gasketed front panel
- Alarm 1 – programmable NO or NC relay
- Universal input power, 90-264 VAC or 11-26 VAC/VDC
- Bumpless transfer to manual mode during sensor failure
- Power limiter output
- Wide variety of alarm mode selections
- RS-485 and RS-232 data communications interface
- Bright 0.40" (10 mm) red LED process display, 0.31" (8 mm) green LED setpoint display
- Fast input sample rate (5 samples/second)
- Automatic programming
- Differential control
- "Soft-Start" ramp and dwell timer
- Analog input for remote setpoint and current transformer
- Event input for changing functions and setpoint
- Hardware lockout plus remote lockout protection
- Loop break alarm
- Analog retransmission
- DC power supply outputs
- Tempco's most highly featured 1/16 DIN control
.webp)

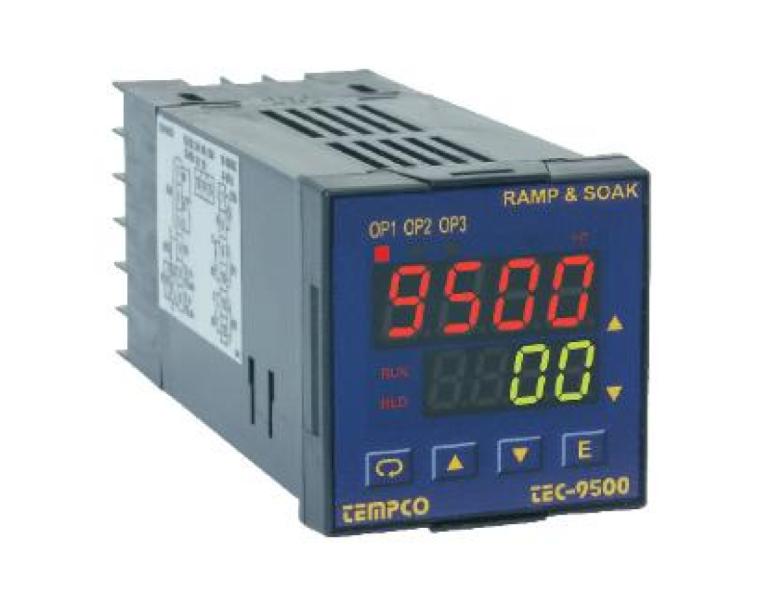

Model TEC-9500 Temperature Controller
Model TEC-9500 Temperature Controller
Designed for efficient and reliable process control. Our device features RS485 serial communication in Modbus RTU for seamless integration into your process control system. With a removable faceplate for immediate replacement and sampling time of 60ms, you can expect minimal downtime and optimal performance. This makes our product the ideal solution for any application that demands precise and reliable process control.
Design Features
- Ramp & Soak Programmable Control
- Nine recipes (profiles) available using 64 segments maximum per recipe
- Event Input – one of 8 functions can be chosen: start run mode, hold mode, abort recipe,
manual mode, failure transfer, turn off, segment advance, select 2nd set of PID parameters - Event Output – 3 relays are available. Can be programmed to any segment or end of recipe
- Analog Retransmission – optional mA or VDC transfer of PV or SV values
- Highly accurate universal input with 18 bit analog to digital converter
- Bright 0.40" (10mm) red LED process display
- Fast sample rate – 200ms
- Fuzzy logic autotune PID – 2 sets of values can be used
- Optional RS-485 or RS-232 communications interface
- Programming port available for PC connection allowing quick set-up
- Lockout protection guards against unauthorized setting changes
- Bumpless transfer allows continued temperature control if sensor fails
- Universal input power – 90-250 VAC or 11-26 VAC/VDC
- Short panel depth required
No items found.
No items found.
No items found.
