Strip Heater - Leads & Terminations Details

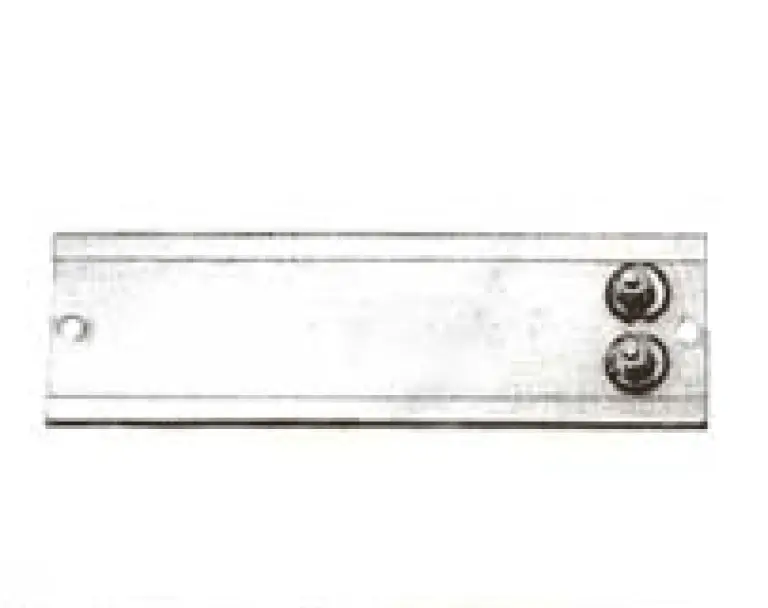

Type A: Post Terminal Strip Heater

Terminals are provided at one end across width. Facilitates wiring for making connections coming from one end. Available in width 2" and wider.

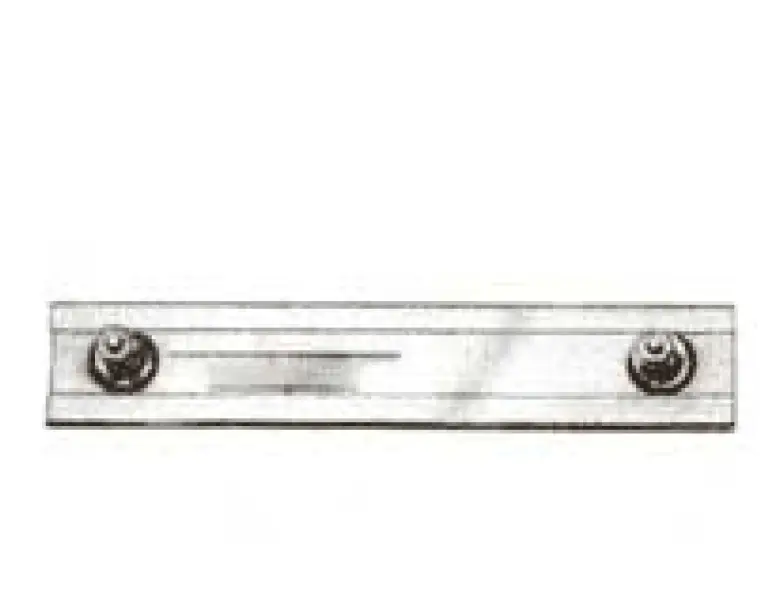

Type B: Strip Heater Post Terminals each end

This terminal arrangement is good when heaters have to be connected in parallel and the wiring is coming from each end. Available in width 3/4" and wider.

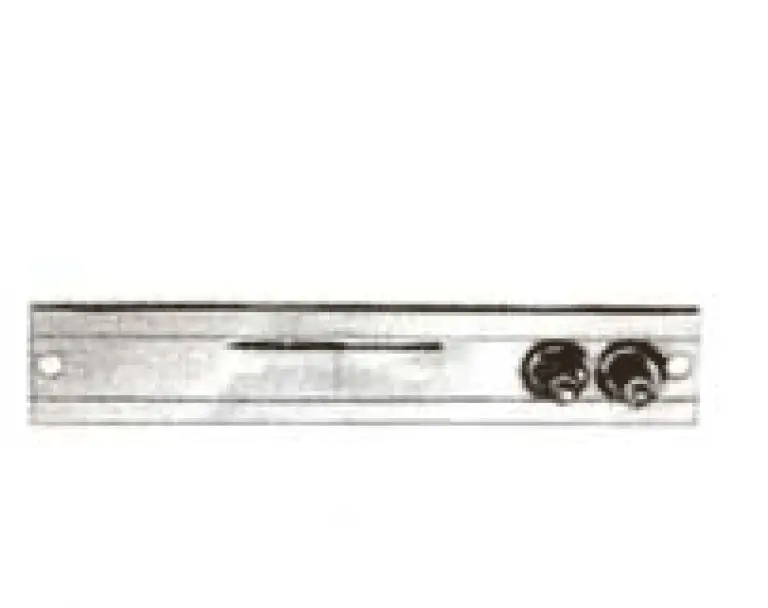

Type C: Strip Heater Post Terminal on one end

Terminals are provided in line parallel to the length of the heater. This provides ease of wiring and making parallel connections.

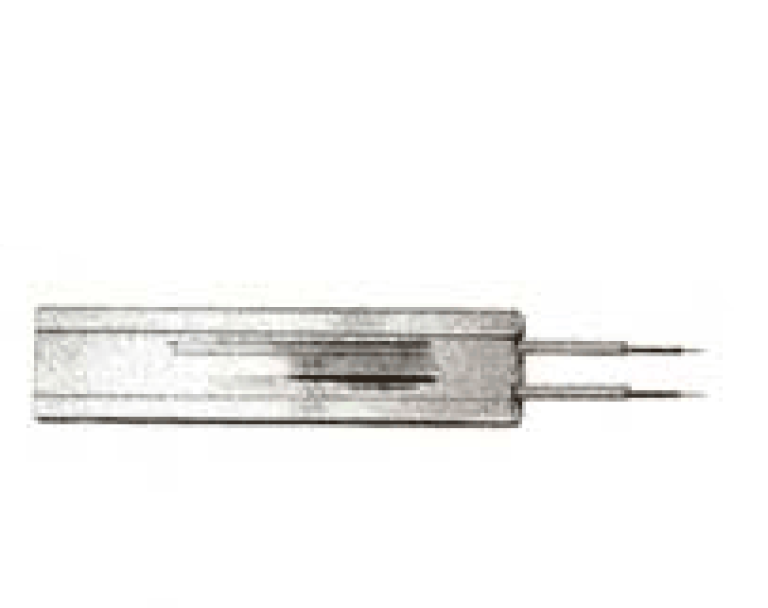

Type D: Strip Heater Leads one end

Lead wire is internally connected exiting from one end. Standard lead length is 12" and is rated to 250 deg. C, 600V. Available in width 1" and wider.

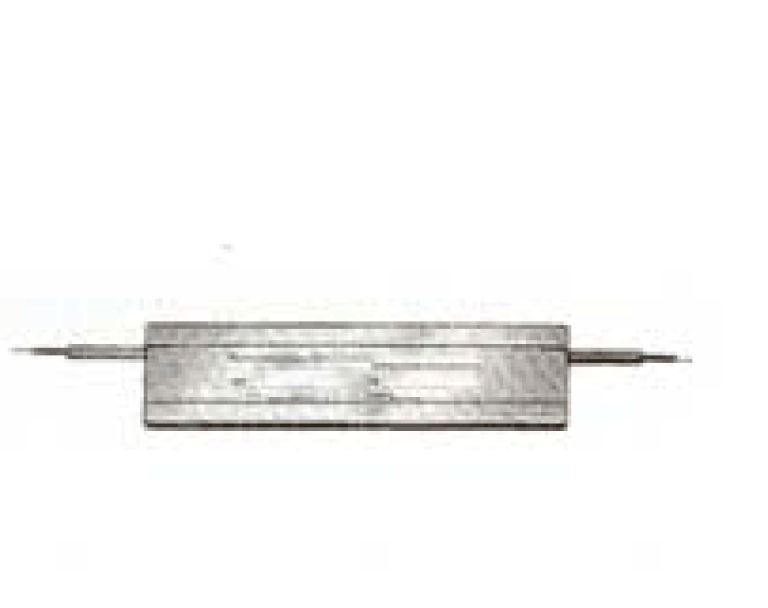

Type E: Strip Heater Lead each end

Fiberglass insulated leads are internally connected and exit from each end for ease of wiring. Lead length is 12" and are rated to 250 deg., 600V. mounting holes can be provided to contour from the path of leads or vice versa.

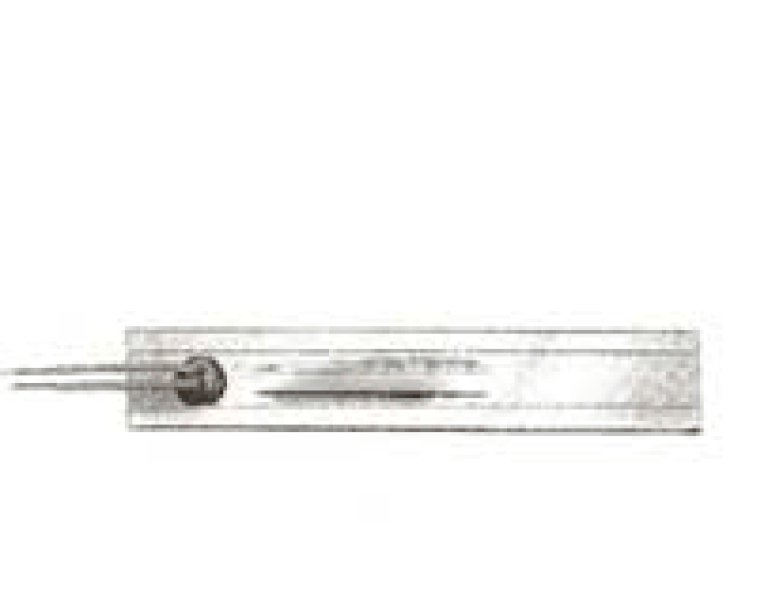

Type F: Strip Heater Leads off top one end

Leads exit off top through a bump on one side. Leads are fiberglass insulated 12" long. Rated at 250 deg. C, 600V. This termination is good where there is no room for leads from the edge of the heater.

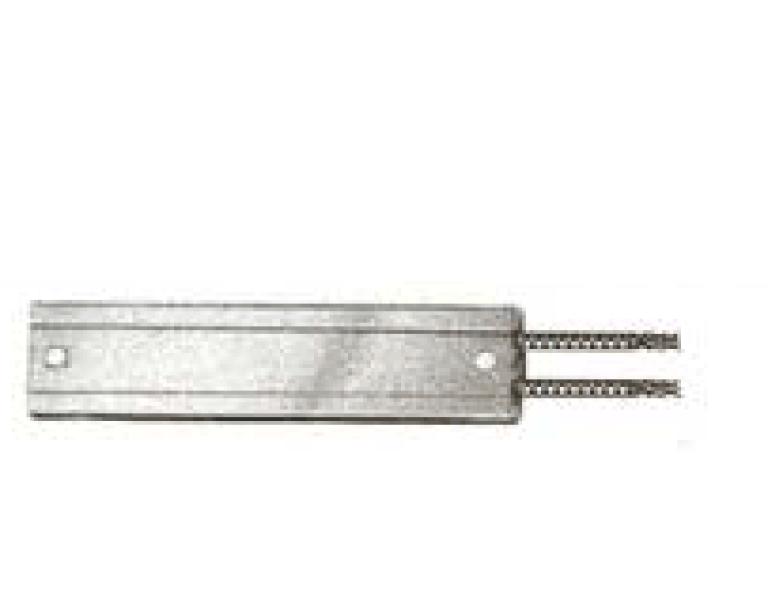

Type G: Strip Heater Metal Braid Leads one end

For extra protection and strength leads are covered with stainless steel metal braid. Leads are internally connected and exit one end for ease of wiring. Available in 1" and wider.

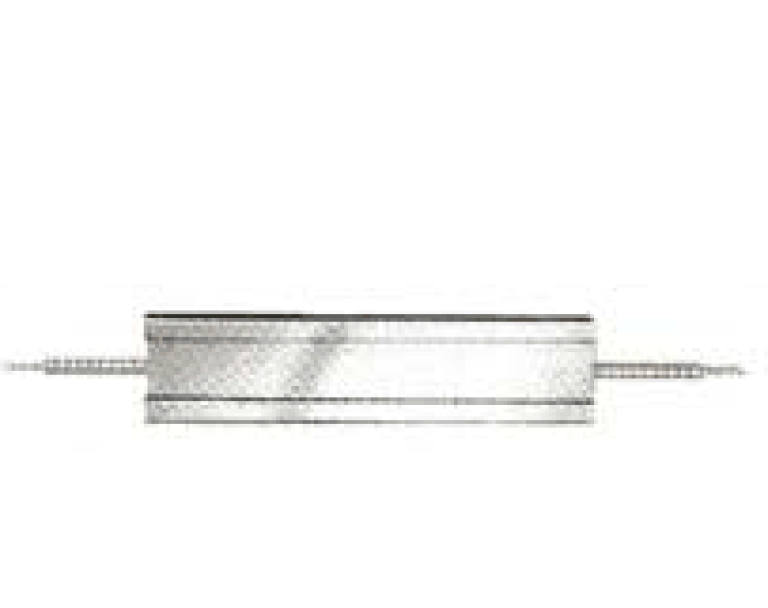

Type H: Strip Heater Metal Braid Leads each end

Leads are at each end and are protected by stainless steel metal braid. Lead length is 12" each end. Rated at 250 deg. C, 600V. Available in 3/4" and wider.

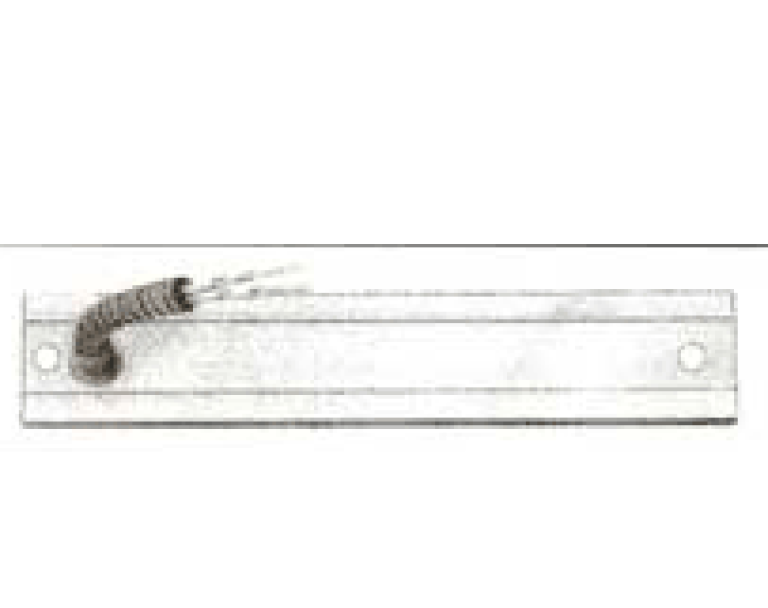

Type J: Strip Heater Armor Cable Leads

Armor conduit exiting from one end protects leads. 10" conduit is standard with 2" leads extending beyond.
