Gefran Temperature Controls - Performance Models Product Details
For high-demand control applications, where the controller has to think before acting.
For high-demand control applications, where the controller has to think before acting.
Image Gallery
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)

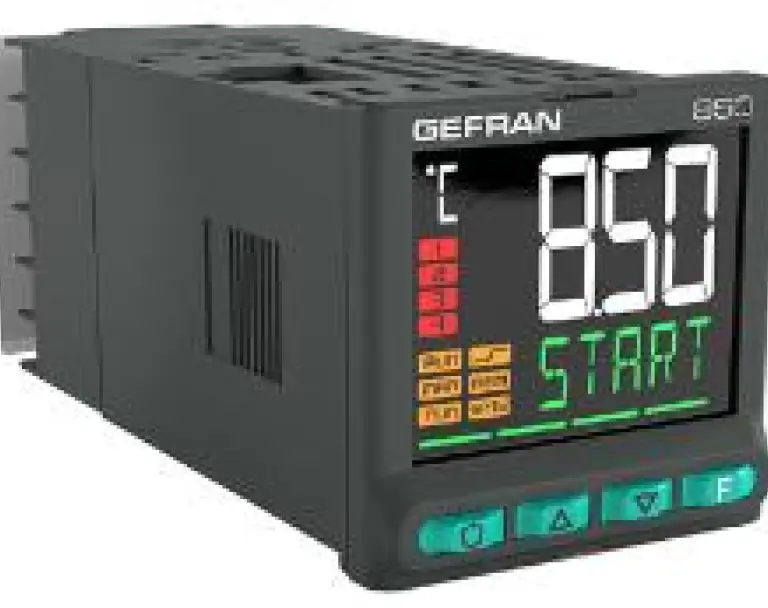

850 1/16 DIN Double PID Temperature Controller
850 1/16 DIN Double PID Temperature Controller
This industrial temperature controller offers configurable scrolling diagnostics messages in the selected language, easy guided configuration, and copy/paste parameters even with power off. It includes energy counters and load switching for preventive maintenance, and features 32 function block and 8 math application blocks for powerful and versatile industrial control.
Description
- Operator interface with large LCD Display, customizable, with choice of colors
- Scrolling diagnostics messages, configurable, in the selected language
- Easy, guided configuration, copy/paste parameters even with power off
- Preventive maintenance with energy counters (kWh) and load switching
- 16 function block applications
- Timer, setpoint and algorithm programmer for controlling motorized valves
- Advanced tuning of control parameters
- Different password levels
- Universal input configurable for thermocouples, resistance thermometers, linear inputs
- Remote setpoint input
- Relay, logic, isolated analog outputs
- Up to two CT inputs for interrupted load diagnostics
- RS485 serial communication in Modbus RTU
- Removable faceplate for immediate replacement
- Sampling time 60ms
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
800 Controller
800 Controller
The device offers a universal input configurable from the faceplate, an accuracy of 0.2% f.s., and two control outputs for relay, logic or analogue with Heat/Cool function. This device provides the flexibility, accuracy, and control you need for optimal process performance.
Description
- Universal input configurable from the faceplate
- Accuracy 0,2% f.s.
- Two control outputs: relay, logic or analogue with Heat/Cool function
- 3 configurable alarms
- 2 analogue outputs
- 2 digital inputs with configurable function
- Auxiliary input for C.T. or remote setpoint
- Heater Break or shortcircuit probe alarm
- Self-tuning, Soft-start, Auto-tuning, Man/Auto, Bumpless, Setpoint, Locale/Remoto
- Function multiset, rampa di set, timer
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
800P Programmer-Controller
800P Programmer-Controller
Our latest product is a highly accurate and flexible device for process control. With a universal input configurable from the faceplate, fast acquisition rate of the input signal every 120msec and a resolution of 30000 steps, you can be confident in the precision and reliability of your process control. Additionally, it comes with two control outputs, providing flexibility to choose between relay, logic or analogue with Heat/Cool function for optimal performance.
Description
- Universal input configurable from the faceplate
- Acquisition of the input signal every 120msec ; resolution 30000steps
- Two control outputs: relay, logic or analogue with Heat/Cool function
- 3 configurable alarms
- 2 analogue outputs (setpoint retransmission)
- 2 digital inputs with configurable function
- Auxiliary input for C.T. or remote setpoint
- Heater Break or shortcircuit probe alarm
- Self and Auto-tuning, Soft-start, Local/Remote setpoint, Auto/Man
- 12 (16) steps arranged in max. 4 programs
- Second SP retransmitted to a slave controller, with same time-base
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)

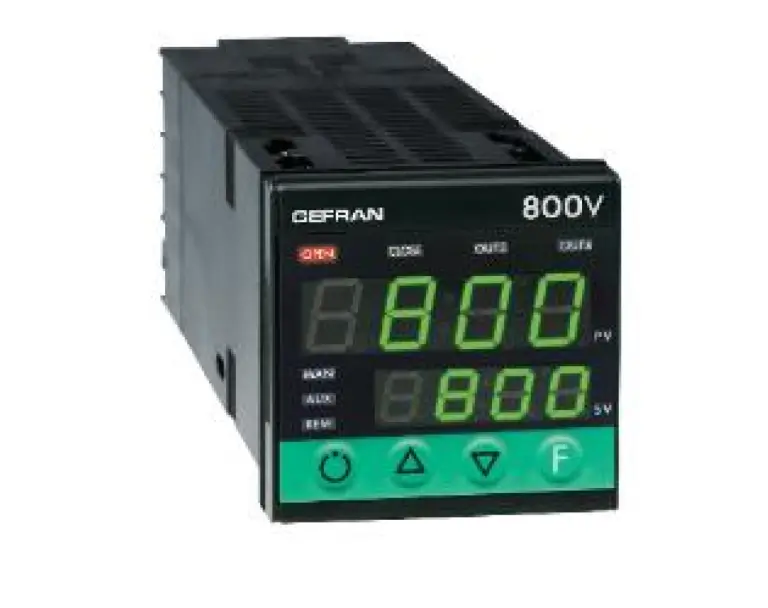

800V Controller for Motorized Valves
800V Controller for Motorized Valves
Our latest product provides reliable and efficient process heating control with advanced functionality such as heater break or short circuit probe alarm. It offers self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes for flexibility and convenience. With the multiset function and timer set ramp, precise temperature control can be achieved for optimal process performance.
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)

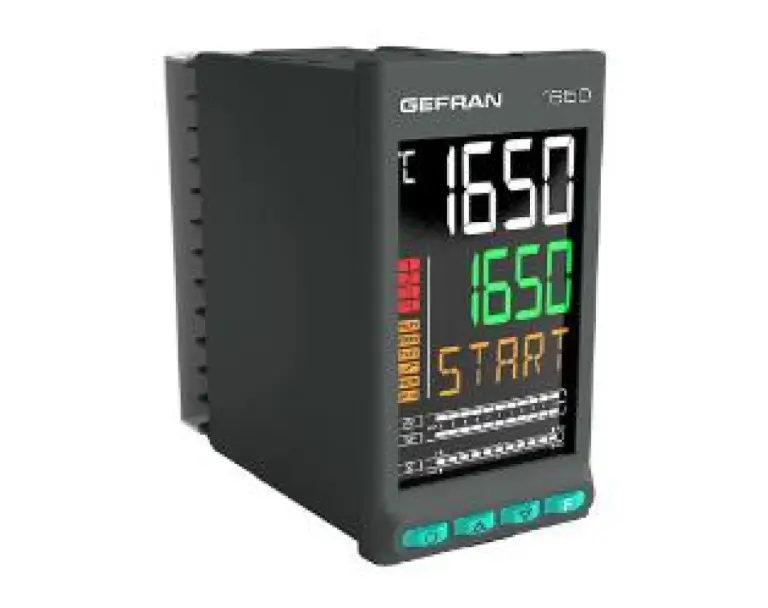

1650 PID 1/8 DIN Double Temperature Controller
1650 PID 1/8 DIN Double Temperature Controller
features different password levels, ensuring secure access to the device's functionalities. With 2 universal inputs configurable for thermocouples, resistance thermometers, linear inputs, and 2 PID control loops, precise temperature control can be achieved. Additionally, our device includes 2 setpoint programmers with 128 steps in 16 programs, providing optimal flexibility for managing complex temperature profiles.
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)
.webp)

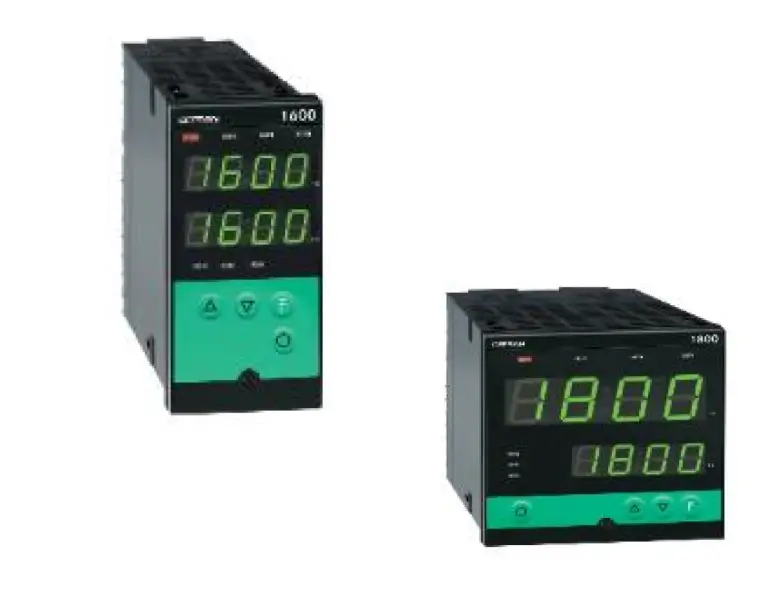

1600 - 1800 Controller
1600 - 1800 Controller
Our latest product is a reliable and efficient solution for process heating control with advanced functionality. It features heater break or short circuit probe alarm to ensure safety and protection. With self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes, our device provides flexibility and convenience. Additionally, the function multiset, rampa di set, and timer enable precise temperature control for optimal process performance.
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)

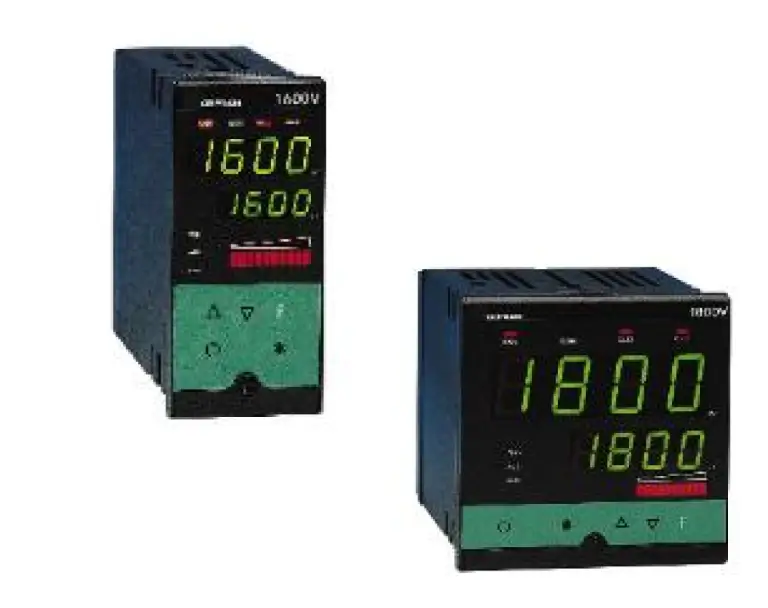

1600V - 1800V Controllers for Motorized Valves
1600V - 1800V Controllers for Motorized Valves
Our latest product is a powerful and versatile device for precise temperature control. With self and auto-tuning, soft-start, local/remote setpoint, and auto/man modes, our device provides flexibility and convenience. The multiset function and timer set ramp enable the setting of multiple parameters, ensuring precise temperature control for optimal process performance.
Description
- Universal input configurable from the faceplate
- Acquisition of the input signal every 120msec ; resolution 30000 steps
- Two control outputs: relay, logic or analogue with Open/Close valve function
- 3 configurable alarms
- 2 analogue outputs (setpoint retransmission)
- 2 digital inputs with configurable function
- Auxiliary input for valve position potentiometer feedback
- Heater Break or shortcircuit probe alarm
- Self and Auto-tuning, Soft-start, Local/Remote setpoint, Auto/Man
- Multiset function, timer set ramp
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)
%20(1).webp)

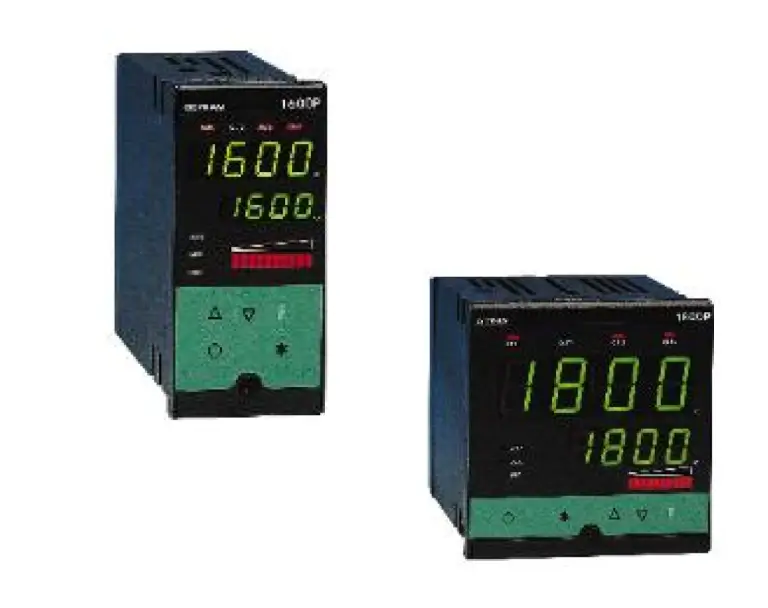

1600P - 1800P Programmer-Controller
1600P - 1800P Programmer-Controller
Designed to optimize temperature control with advanced functionality. It features 12 (16) steps arranged in max. 4 programs for efficient and precise temperature management. Additionally, it offers a second SP retransmitted to a slave controller with the same time-base for enhanced control capabilities. This makes our device the ideal solution for any application that demands reliable and efficient temperature control.
Description
- Universal input configurable from the faceplate
- Acquisition of the input signal every 120msec ; resolution 30000steps
- Two control outputs: relay, logic or analogue with Heat/Cool function
- 3 configurable alarms
- 2 analogue outputs (setpoint retransmission)
- 2 digital inputs with configurable function
- Auxiliary input for C.T. or remote setpoint
- Heater Break or shortcircuit probe alarm
- Self and Auto-tuning, Soft-start, Local/Remote setpoint, Auto/Man
- 12 (16) steps arranged in max. 4 programs
- Second SP retransmitted to a slave controller, with same time-base
%20(1)%20(1)%20(1).webp)
%20(1)%20(1)%20(1).webp)
%20(1)%20(1)%20(1).webp)
%20(1)%20(1)%20(1).webp)
%20(1)%20(1)%20(1).webp)
%20(1)%20(1)%20(1).webp)
%20(1)%20(1)%20(1).webp)

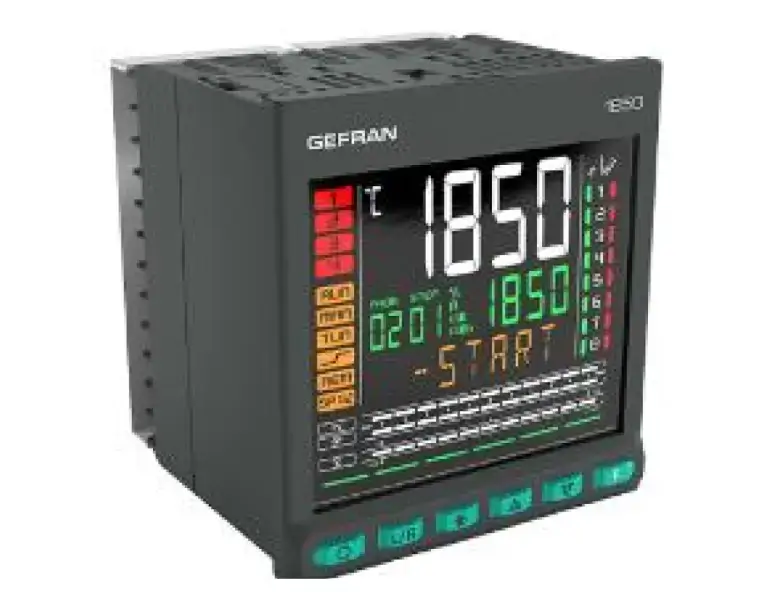

1850 PID 1/4 DIN Double Loop Temperature Controller
1850 PID 1/4 DIN Double Loop Temperature Controller
Designed for efficient and reliable process control. Our device features RS485 serial communication in Modbus RTU for seamless integration into your process control system. With a removable faceplate for immediate replacement and sampling time of 60ms, you can expect minimal downtime and optimal performance. This makes our product the ideal solution for any application that demands precise and reliable process control.
Description
- Operator interface with large LCD display and three configurable bar graph
- Scrolling diagnostics messages, configurable, in the selected language
- Easy, guided configuration, copy/ paste parameters even with power off
- Preventive maintenance with energy counters (kWh) and load switching
- 32 function block applications
- 8 math application blocks
- Timer, setpoint and algorithm programmer for controlling motorized valves
- Advanced tuning of control parameters
- Different password levels
- 2 universal inputs configurable for thermocouples, resistance thermometers, linear inputs
- 2 PID control loop
- 2 setpoint programmers (128 steps in 16 programs)
- Relay, logic, isolated analog outputs
- Up to two CT inputs for interrupted load diagnostics
- RS485 serial communication in Modbus RTU
- Removable faceplate for immediate replacement
- Sampling time 60 ms
